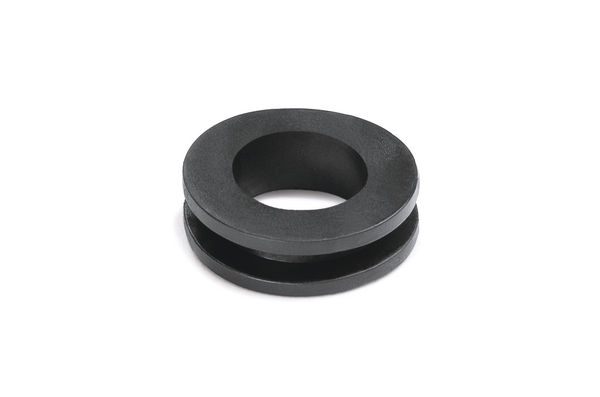

Cable grommet, Ø18.0 mm, black, 500pcs.
Art.-No. 633-03050 | HV1305-PVC-FR-BK Details

  • Protects cables from sharp edges
  • Provides additional strain relief
  • Flexible and easy to apply
  • High resistance to chemicals and environmental influences

Request your individual offer now

Application Edge protection grommets are used wherever cable and wires are routed through outlets and apertures. HellermannTyton grommets offer excellent mechanical protection.
Cable ∅ max 15.0mm
Cable ∅ min 14.0mm
Colour Black (BK)
Material Polyvinylchloride, flame retardant (PVC-FR)
Pack Cont. 500pcs.
Package Content packed in pcs.
PART DESCRIPTION HV1305-PVC-FR-BK
Product Family HV1305
Product Group Edge Protection Grommets

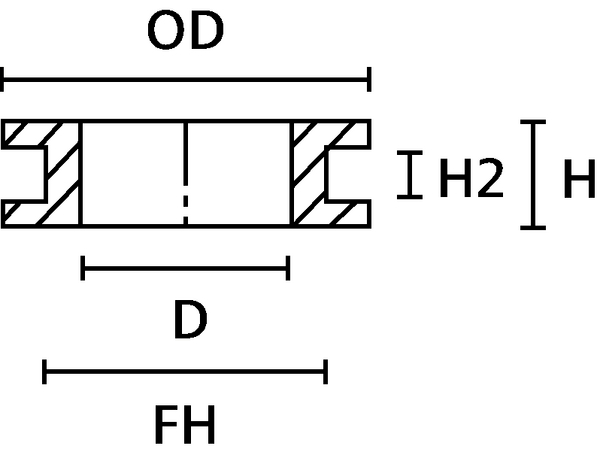

Short Description Edge protection grommets black, outside diameter: 24.0mm, inside diameter: 14.0mm, height: 7.0mm
Variant Round
Diameter (D) 14.0mm
for Hole ∅ (FH) 18.0 mm
Height (H) 7.0mm
Height (H2) 3.0mm
Outside Ø (OD) 24.0mm
Shore Hardness A 55±5
Weight/Unit 0.0018kg
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Halogen-free No
Hazardous Goods No
Nato number 5325-12-152-2352
Operating Temperature -30 °C to +60 °C
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026186474
Packaging 1 - Height (m) 0.06m
Packaging 1 - Length (m) 0.35m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0084
Packaging 1 - Weight (kg) 0.900001kg
Packaging 1 - Width (m) 0.4m
ETIM 7.0 Key EC000879
ETIM 8.0 Key EC000879
ETIM 9.0 Key EC000879
UNSPSC Key 24141510
