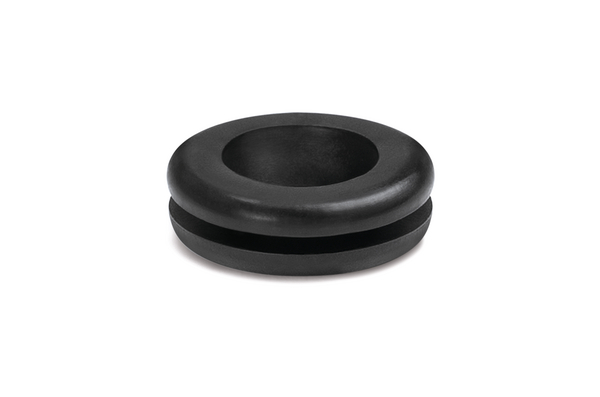

Edge Protection Grommets : HV1401
Edge protection grommets blackArticle number: 633-04010
Features
- Protects cables from sharp edges
- Provides additional strain relief
- Flexible and easy to apply
- High resistance to chemicals and environmental influences
Certifications & Approvals
Application
Edge protection grommets are used wherever cable and wires are routed through outlets and apertures. HellermannTyton grommets offer excellent mechanical protection.
More products in this product group
Edge Protection Grommets >| Cable ∅ max | 8.0mm |
| Cable ∅ min | 5.0mm |
| Colour | Black (BK) |
| Pack Cont. | 1000pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | HV1401-PVC-FR-BK |
| Product Family | HV1401 |
| Product Group | Edge Protection Grommets |
| Short Description | Edge protection grommets black |
| Variant | Closed |
| Bundle ∅ max. | 15.9mm |

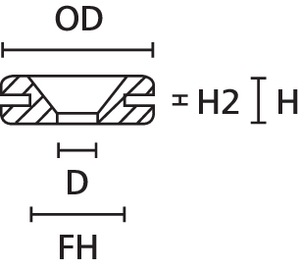

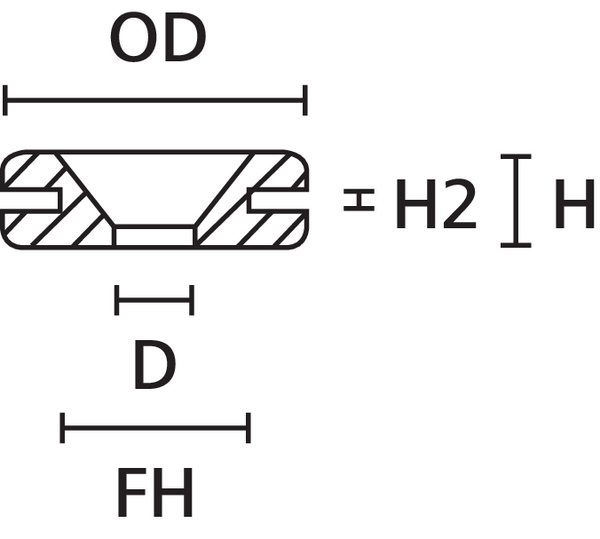

| Diameter (D) | 5.0mm |
| for Hole ∅ (FH) | 9.5 mm |
| Height (H) | 4.8mm |
| Height (H2) | 0.8mm |
| Outside Ø (OD) | 15.9mm |
| Shore Hardness A | 55±5 |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V0 |
| Hazardous good | No |
| Material | Polyvinylchloride, flame retardant (PVC-FR) |
| Nato number | 5325-12-164-5828 |
| Operating Temperature - °C | -30 °C to +60 °C |
| Specifications |
|
| Waterproof | No |
|
|
|
| EAN / GTIN | 4031026186498 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.2m |
| Packaging 1 - Qty | 1000 |

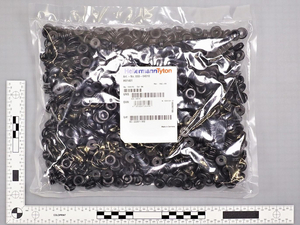

| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0024m³ |
| Packaging 1 - Weight (kg) | 0.8kg |
| Packaging 1 - Width (m) | 0.3m |
| Weight | 0.8kg |
| ETIM 6.0 | EC000879 |
| ETIM 7.0 Key | EC000879 |
