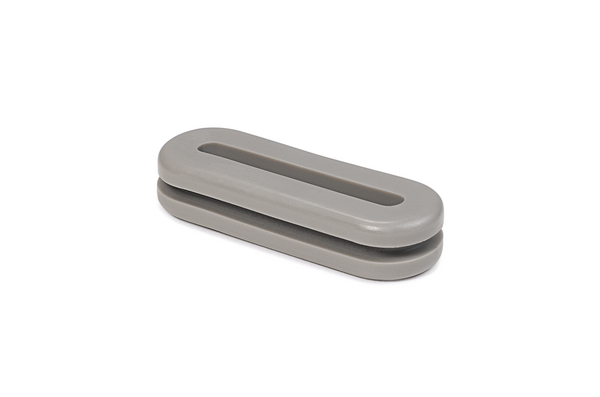

Edge Protection Grommets HV1608

HV1608, Article number: 633-06088


  • Protects cables from sharp edges
  • Provides additional strain relief
  • Flexible and easy to apply
  • High resistance to chemicals and environmental influences

Certifications & Approvals


Edge protection grommets are used wherever cable and wires are routed through outlets and apertures. HellermannTyton grommets offer excellent mechanical protection.

HV1608 is suitable for following markets and industries

Cable ∅ max 47.0mm
Cable ∅ min 44.0mm
Colour Grey (GY)
Description Short (BMEcat) (max. 150 characters) Edge protection grommets grey
Pack Cont. 250pcs.
Package Quantity per pcs.
Product Family HV1608
Product Group Edge Protection Grommets
Variant Closed
Bundle ∅ max. 58.0mm

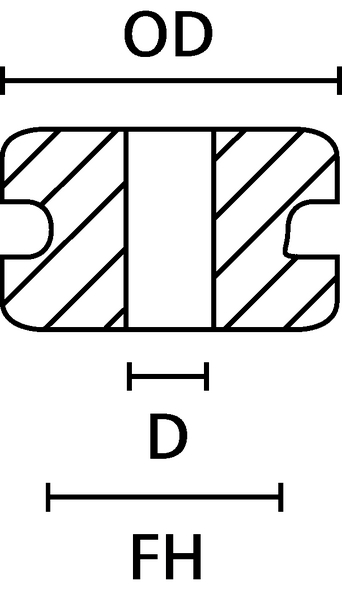

Diameter (D) 44.0mm
for Hole ∅ (FH) 52.0 mm
Height (H) 11.0mm
Height (H2) 3.0mm
Outside Ø (OD) 58.0mm
Shore Hardness A 55±5
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Hazardous good No
Material Polyvinylchloride, flame retardant (PVC-FR)
Operating Temperature - °C -30 °C to +60 °C
Waterproof No
EAN / GTIN 4031026186542
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.35m
Packaging 1 - Qty 250
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0042
Packaging 1 - Weight (kg) 2.5kg
Packaging 1 - Width (m) 0.4m
Weight 2.5kg
ETIM 5.0 EC000879
ETIM 6.0 EC000879
