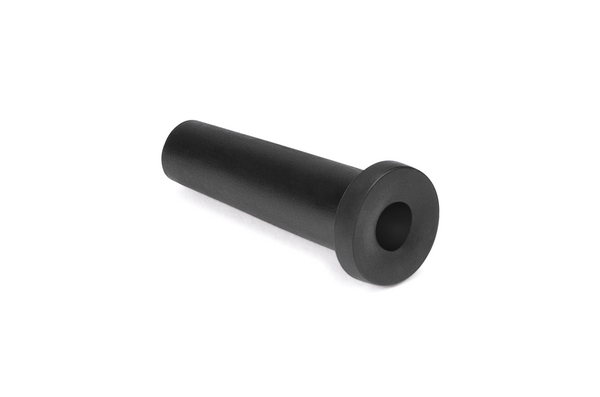

Cable grommet, Ø9.0 mm, black, 1000pcs.
Art.-No. 632-01010 | HV2101-PVC-FR-BK Details

  • Routes cables free of kinks and breakage
  • Provides additional strain relief
  • Flexible and easy to apply
  • High resistance to chemicals, environmental effects and aging

Request your individual offer now

Application Bend protection grommets are typically used for protection of cables at apertures in casings.
Cable ∅ max 6.5mm
Cable ∅ min 5.5mm
Colour Black (BK)
Material Polyvinylchloride, flame retardant (PVC-FR)
Pack Cont. 1000pcs.
Package Content packed in pcs.
PART DESCRIPTION HV2101-PVC-FR-BK
Product Family HV2101
Product Group Bend Protection Grommets
Short Description Bend protection grommets black, outside diameter: 13.0mm, inside diameter: 5.3mm
Variant Open

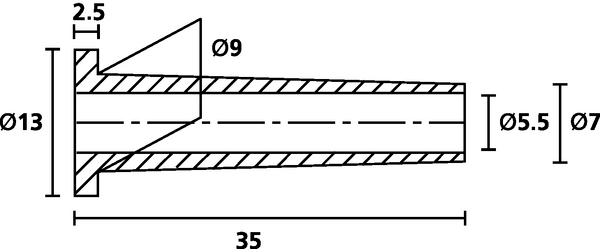

Diameter (D) 5.3mm
for Hole ∅ (FH) 9.0 mm
Length (L) 35.0mm
Outside Ø (OD) 13.0mm
Outside ∅ (OD2) 7.0mm
Shore Hardness A 55±5
Weight/Unit 0.001554kg
∅ (D2) 5.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Hazardous Goods No
Nato number 5975-12-145-9325
Operating Temperature -30 °C to +60 °C
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026185972
Packaging 1 - Height (m) 0.055m
Packaging 1 - Length (m) 0.47m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01409
Packaging 1 - Weight (kg) 1.597597kg
Packaging 1 - Width (m) 0.545m
ETIM 7.0 Key EC000879
ETIM 8.0 Key EC000879
ETIM 9.0 Key EC000879
