Cable grommet, ⌀8.8 mm, black, 1000pcs.

Art.-No. 632-02090

| HV2209-PVC-FR-BK

|

Protection of cables and routing free of kinks and breakage.

Routes cables free of kinks and breakage
Provides strain relief
Flexible and easy to apply
High resistance to chemicals und environmental influences

Add to watchlist

Request quote

Distributors near you

Downloads

More products in this product group:

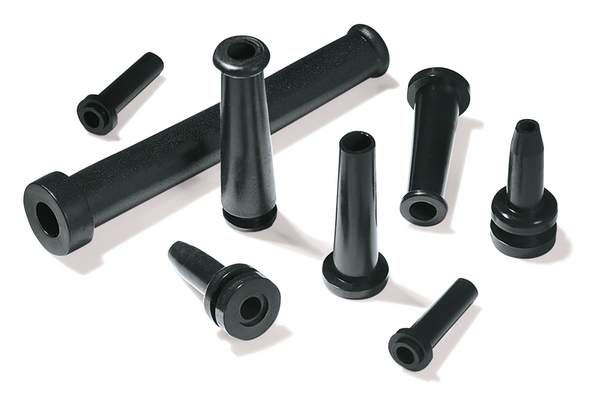

Bend Protection Grommets

Base Data

Application	Bend protection grommets are typically used for protection of cables at apertures in casings.
Cable ⌀ max	7.8mm
Cable ⌀ min	6.5mm
Colour	Black (BK)
Local order number	HV2209
Material	Polyvinylchloride, flame retardant (PVC-FR)
PART DESCRIPTION	HV2209-PVC-FR-BK
Package Content	1000pcs.
Package Content packed in	pcs.
Product Family	HV2209
Product Group	Bend Protection Grommets
Shore Hardness A	55±5
Short Description	Bend protection grommets black
Type	HV2209
Variant	Open
Weight/Unit	0.001067kg

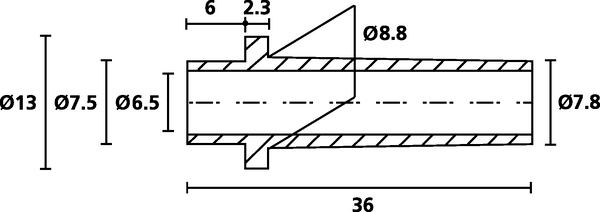

Product Dimensions


⌀ (D2)	7.5mm
Diameter (D)	6.5mm
Length (L)	36.0mm
Outside ⌀ (OD)	13.0mm
Outside ⌀ (OD2)	7.8mm
for Hole ⌀ (FH)	8.8 mm

Downloads

Specifications

CAS Number	115-86-6
Critical Substance	Triphenylphosphate
EC Number	204-112-2
ELV compliant Dir. Art. 4 (2)	Yes
Flammability	UL 94 V0
Hazardous Goods	No
Nato number	5975-12-173-9134
Operating Temperature	-30 °C to +60 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging


Country of Origin	DE
Customs Number	39269097
GTIN-13 / EAN	4031026186108
Packaging 1 - Height (m)	0.1m
Packaging 1 - Length (m)	0.425m
Packaging 1 - Qty	1000
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.01615m³
Packaging 1 - Weight (kg)	1.095kg
Packaging 1 - Width (m)	0.38m

More Information

ETIM 7.0 Key	EC000879
ETIM 8.0 Key	EC000879
ETIM 9.0 Key	EC000879
