Cable grommet, ∅6.0 mm, black, 2000pcs.
Art.-No. 632-02130 | HV2213-PVC-FR-BK Details

  • Routes cables free of kinks and breakage
  • Provides strain relief
  • Flexible and easy to apply
  • High resistance to chemicals und environmental influences

Request your individual offer now

Application Bend protection grommets are typically used for protection of cables at apertures in casings.
Cable ∅ max 4.0mm
Cable ∅ min 3.5mm
Colour Black (BK)
Material Polyvinylchloride, flame retardant (PVC-FR)
PART DESCRIPTION HV2213-PVC-FR-BK
Pack Cont. 2000pcs.
Package Content packed in pcs.
Product Family HV2213
Product Group Bend Protection Grommets

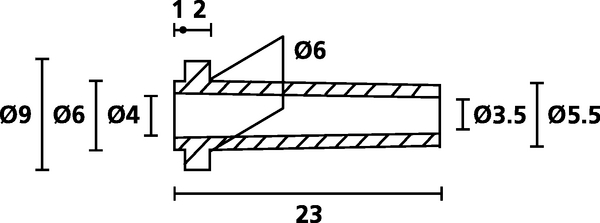

Short Description Bend protection grommets black, outside diameter: 9.0mm, inside diameter: 4.0mm
Type HV2213
Variant Open
Diameter (D) 4.0mm
Length (L) 23.0mm
Outside Ø (OD) 9.0mm
Outside ∅ (OD2) 5.5mm
Shore Hardness A 55±5
Weight/Unit 0.0005kg
for Hole ∅ (FH) 6.0 mm
∅ (D2) 3.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Hazardous Goods No
Operating Temperature -30 °C to +60 °C
ROHS compliant Yes
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026186153
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 2000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01845
Packaging 1 - Weight (kg) 1.021815kg
Packaging 1 - Width (m) 0.41m
ETIM 7.0 Key EC000879
ETIM 8.0 Key EC000879
ETIM 9.0 Key EC000879
