24/07/2024

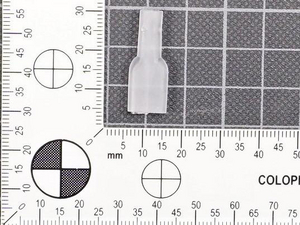

Cable grommet, natural, 2000pcs.
Art.-No. 631-08199 | HV4819-PVC-FR-NA Details

  • Protects effectively against spraying water
  • Flexible and easy to apply
  • High resistance to chemicals and environmental influences

Request your individual offer now

Application The protective push-on caps and elbow grommets are specially constructed to insulate and protect flat pin bushings. The caps and grommets are used in all areas of automotive electronics and in electrical connection systems.

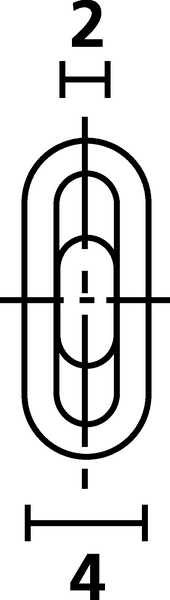

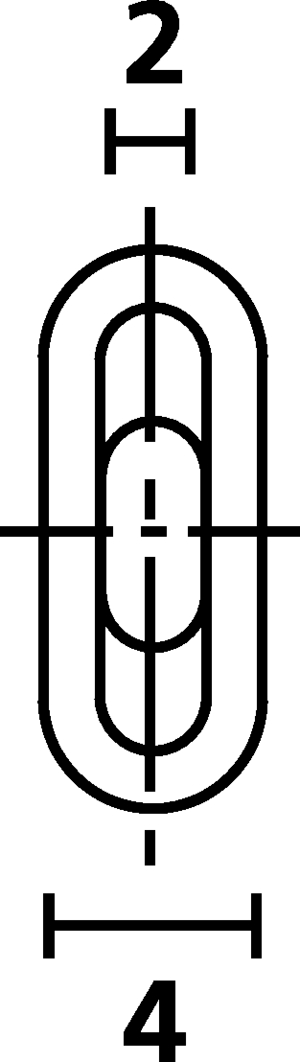

Cable ∅ max 4.0mm
Cable ∅ min 2.0mm
Colour Natural (NA)
Material Polyvinylchloride, flame retardant (PVC-FR)
PART DESCRIPTION HV4819-PVC-FR-NA

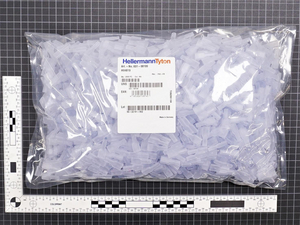

Pack Cont. 2000pcs.
Package Content packed in pcs.
Product Family HV4819
Product Group Push-on Caps
Short Description Push-on Caps natural
Type HV4819
Variant Open

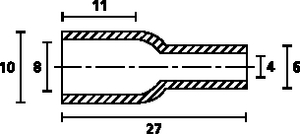

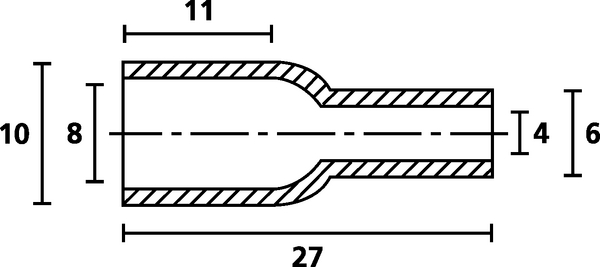

Diameter (D) 8.0mm
Length (L) 27.0mm
Outside Ø (OD) 10.0mm
Outside ∅ (OD2) 6.0mm
Shore Hardness A 55±5
Weight/Unit 0.000577kg
∅ (D2) 4.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Hazardous Goods No
Operating Temperature -30 °C to +60 °C
ROHS compliant Yes
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026185743
Packaging 1 - Height (m) 0.06m
Packaging 1 - Length (m) 0.18m
Packaging 1 - Qty 2000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00356
Packaging 1 - Weight (kg) 1.181kg
Packaging 1 - Width (m) 0.33m
ETIM 7.0 Key EC000879
ETIM 8.0 Key EC000879
ETIM 9.0 Key EC000879
