Cable grommet, black, 2000pcs.
Art.-No. 631-08200 | HV4820-PVC-BK |

Copied
Push-on caps and elbow grommets in various dimensions.

    • Protects effectively against spraying water
    • Flexible and easy to apply
    • High resistance to chemicals and environmental influences
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The protective push-on caps and elbow grommets are specially constructed to insulate and protect flat pin bushings. The caps and grommets are used in all areas of automotive electronics and in electrical connection systems.

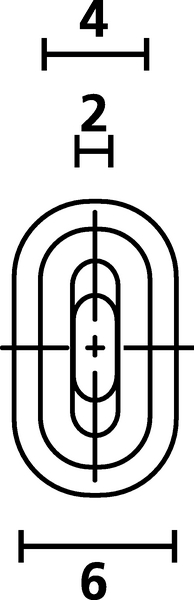

    Cable ⌀ max 4.0mm
    Cable ⌀ min 2.0mm
    Colour Black (BK)
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION HV4820-PVC-BK
    Package Content 2000pcs.
    Package Content packed in pcs.
    Product Family HV4820
    Product Group Push-on Caps
    Shore Hardness A 70±5
    Short Description Push-on Caps black
    Type HV4820
    Variant Open
    Weight/Unit 0.000678kg
    ⌀ (D2) 4.0mm
    Diameter (D) 10.0mm
    Length (L) 25.0mm
    Length (L2) 14.0mm
    Length (L3) 6.0mm
    Outside ⌀ (OD) 12.0mm
    Outside ⌀ (OD2) 6.0mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026185750
    Packaging 1 - Height (m) 0.035m
    Packaging 1 - Length (m) 0.35m
    Packaging 1 - Qty 2000
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0049m³
    Packaging 1 - Weight (kg) 1.383kg
    Packaging 1 - Width (m) 0.4m
    ETIM 7.0 Key EC000879
    ETIM 8.0 Key EC000879
    ETIM 9.0 Key EC000879
    Cable grommets Cable grommets

    Cable grommets

    Wether snap in cable grommets, grommet strips, assortment boxes, grommets for strain relief or bend protection: Find now the right cable grommets for your application.

    Cable grommets >
