15/04/2024

Cable grommet, black, 2000pcs.
Art.-No. 631-08210 | HV4821-PVC-FR-BK Details

  • Protects effectively against spraying water
  • Flexible and easy to apply
  • High resistance to chemicals and environmental influences

Request your individual offer now

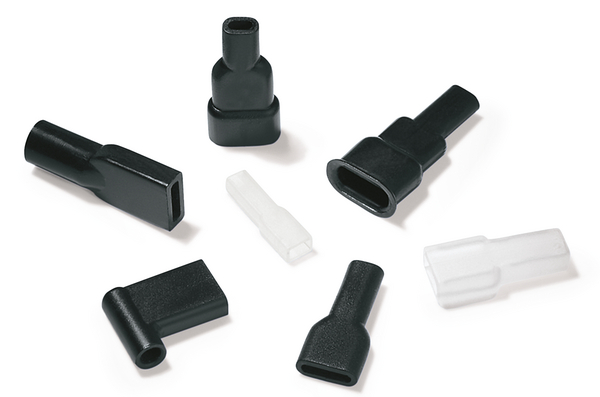

Application Elbow grommets are specially constructed to insulate and protect flat pin bushings. They are used in all areas of automotive electronics and connection technology.
Colour Black (BK)
Material Polyvinylchloride, flame retardant (PVC-FR)
Pack Cont. 2000pcs.
Package Content packed in pcs.
PART DESCRIPTION HV4821-PVC-FR-BK
Product Family HV4821
Product Group Elbow Grommets
Short Description Elbow grommets black
Variant Open

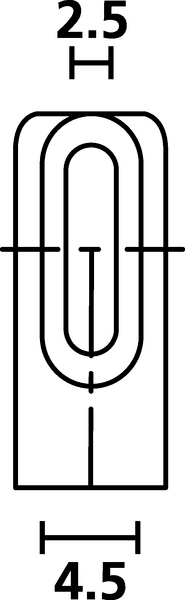

Diameter (D) 8.5mm
Height (H) 14.0mm
Length (L) 17.0mm
Outside Ø (OD) 10.5mm
Outside ∅ (OD2) 5.3mm
Shore Hardness A 55±5
Weight/Unit 0.000566kg
∅ (D2) 3.3mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0, FMVSS 302
Halogen-free No
Hazardous Goods No
Operating Temperature -30 °C to +60 °C
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026185774
Packaging 1 - Height (m) 0.055m
Packaging 1 - Length (m) 0.205m
Packaging 1 - Qty 2000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00372
Packaging 1 - Weight (kg) 1.159kg
Packaging 1 - Width (m) 0.33m
ETIM 7.0 Key EC000879
ETIM 8.0 Key EC000879
ETIM 9.0 Key EC000879

Request your individual offer now
