Stainless steel pre-embossed marking system, manual : SSM
Stainless Steel Marker 10-6 mm Pre-embossed with RArticle number: 540-01180
Features

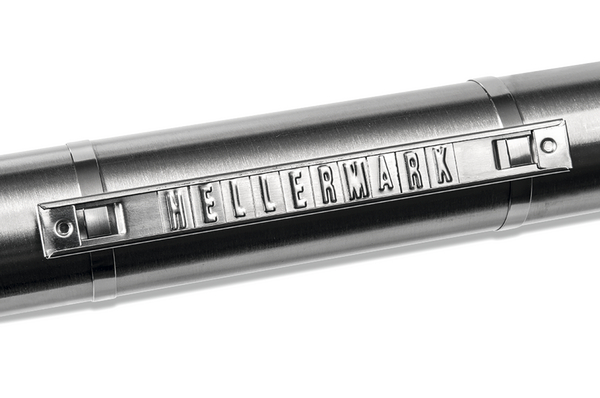

- Stainless steel pre-embossed marker tiles
- Use in harsh and hazardous conditions
- Made of grade SS316 stainless steel for ideal use in aggressive environments
- Insert marker tiles (SSM) into fitting carrier (SSC) and close ends with pliers
- Fasten carriers using stainless steel cable ties with max. strap width of 8mm
- Carrier can be riveted or screw-fixed using two 3mm holes at each end
Certifications & Approvals
Application
Hellermark is used in the rail, marine, offshore, petrochemical, food and construction industries, for the identification of cables, pipes and other equipment in harsh environments.
More products in this product group
Stainless steel pre-embossed marking system, manual >| Colour | Metal (ML) |
| Fixation Method | Others |
| Marking Text | R |
| Pack Cont. | 200pcs. |
| Package Quantity per | Pack |
| PART DESCRIPTION | SSM-SS316-ML |
| Product Family | Hellermark SSM |
| Product Group | Stainless steel pre-embossed marking system, manual |
| Short Description | Stainless Steel Marker 10-6 mm Pre-embossed with R |
| Type | MSSM R |
| Variant | Other |
| With label space | No |

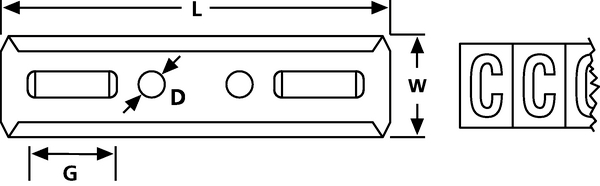

| Length (L) | 10mm |
| Print Method | Embossing |
| Width (W) | 6mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Hazardous good | No |
| Material | Stainless Steel (SS316) |
| Operating Temperature - °C | -80 °C to +538 °C |
| Specifications |
|
|
|
|
| EAN / GTIN-13 | 5022660047541 |
| Packaging 1 - Height (m) | 0.005m |
| Packaging 1 - Length (m) | 0.07m |
| Packaging 1 - Qty | 200 |
| Packaging 1 - Type | Pack |
| Packaging 1 - Volume (m³) | 0.00006m³ |
| Packaging 1 - Weight (kg) | 0.02kg |
| Packaging 1 - Width (m) | 0.17m |
| Weight | 0.02kg |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 Key | EC001530 |
