Heat Shrinkable Cable Repair Sleeve 1000 mm, shrink ratio up to 4.5:1 (43/10 mm), adhesive lined, black
Art.-No. 450-20002 | RMS 43-10-PO-X-BK Details

  • Fast, moisture proof and permanent repair of cable jackets
  • Only 6 sizes for a wide range of cable diameters: from 10 mm up to 160 mm
  • Available in 4 standard lengths, custom lengths available on request
  • Each RMS kit is ready for use and comes with instruction sheet, abrasive strip and cleaning sachet
  • Weather resistant and halogen free
  • TCP (thermo-chromatic paint) spots indicate the sleeve has been sufficiently heated
Show more
Package size

Request your individual offer now

Application RMS wrap-around sleeves are easy to install.
Application Tool CHG900
Cable ∅ max 35mm
Cable ∅ min 15mm
Colour Black (BK)
Material Polyolefin, Chemically cross-linked (PO-X)
Pack Cont. 1000.0mm
PART DESCRIPTION RMS 43-10-PO-X-BK
Product Family RMS
Product Group Heat shrinkable cable repair sleeves
Short Description Heat Shrinkable Cable Repair Sleeve 1000 mm, shrink ratio up to 4.5:1 (43/10 mm), adhesive lined, black
Shrink Ratio up to 4.5:1
Variant Shrink Cast
With inner glue (Yes/No) Yes
Length (L) 1000.0mm
Longitudinal Change After Shrinkage -10% max.

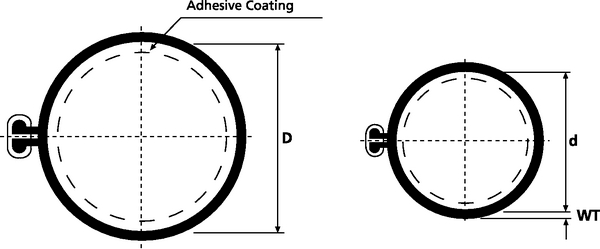

Recov. ∅ d 10.0mm
Supplied ∅ D 43.0mm
Wall (WT) 2.30mm
Weight/Unit 0.4412kg
Adhesive Hot melt adhesive
Dielectric Strength 30kV/mm
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
Limited Fire Hazard No
Minimum Shrink Temperature - °C +110 °C
Operating Temperature -40 °C to +120 °C
Pre-Printed Yes
Softening Point Adhesive +105 °C
Specifications
Tensile Strength 17.5MPa
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
Country of Origin IN
Customs Number 85472000
GTIN-13 / EAN 4031026406480
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 1.0m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00425
Packaging 1 - Weight (kg) 0.4412kg
Packaging 1 - Width (m) 0.17m
Packaging 3 - Height (m) 0.09m
Packaging 3 - Length (m) 1.035m
Packaging 3 - Qty 5
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0214
Packaging 3 - Weight (kg) 2.706kg
Packaging 3 - Width (m) 0.23m
Packaging 4 - Height (m) 1.224m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 180
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.175
Packaging 4 - Weight (kg) 118.416kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000219
ETIM 8.0 Key EC000219
ETIM 9.0 Key EC000219
