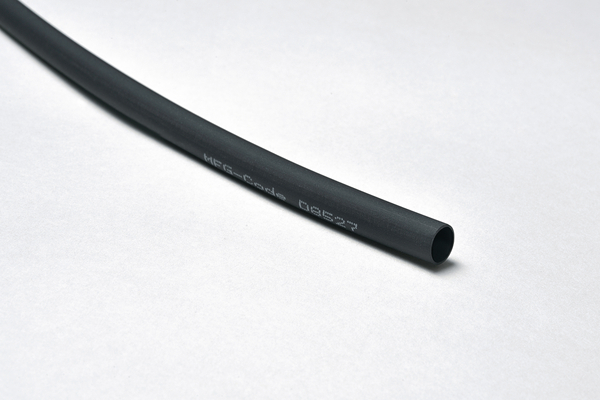

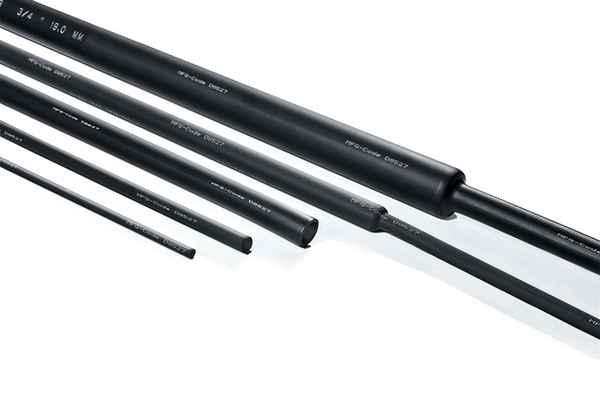

Heat Shrinkable Tubing 2:1 VG-Norm 4,8/2,4
Art.-No. 342-20010 | SE28 4.8/2.4-POA-BK Details

  • Flexible, high performance elastomeric heat shrink tubing
  • Used in aerospace, defence, railway and automotive applications
  • Resistant to diesel fuel, aviation and hydraulic fluids
  • Provides a reliable protection against abrasion and mechanical damage
  • Very suitable for protecting cables and wire harnesses
  • For high temperature applications up to 150 °C
Show more

Request your individual offer now

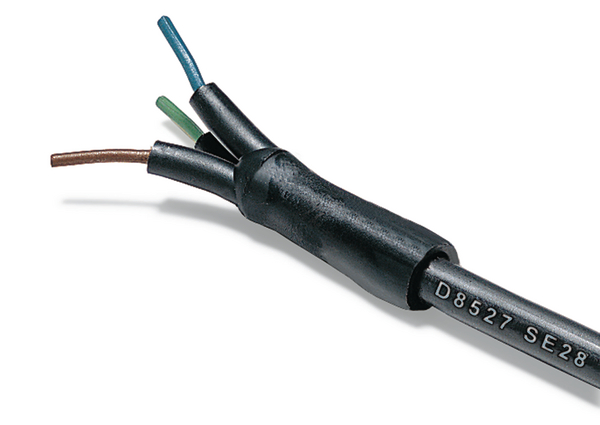

Application SE28 is used for long-term protection of cables and wire harnesses in military equipment, motor sports, and aviation.
Application Tool H6100
Behaviour at Heat Shock not cracking, not dripping, not fluid
Behaviour At Low Temperature not cracking
Behaviour at low Temperature test method VG 95343-5
Colour Black (BK)
Elongation At Heat Aging 290%
Heat Aging Test 168h/160°C
Heat Aging test method VG 95343-5
Heat Shock Tensile Strength 10MPa
Heat Shock Test 4h/215°C
Heat shock test test method VG 95343-5
Material Elastomer, cross-linked (POA)
Minimum Tensile Strength At Heat Aging 11MPa
Pack Cont. 60m
Package Content packed in Reel
PART DESCRIPTION SE28 4.8/2.4-POA-BK
Printable No
Product Family SE28
Product Group Heat Shrinkable Tubing 2:1 - Elastomer
Short Description Heat Shrinkable Tubing 2:1 VG-Norm 4,8/2,4
Shrink Ratio 2:1
Variant Standard-Wall
Longitudinal Change After Shrinkage -10% max.
Recov. ∅ d 2.4mm
Recov. ∅ d max. (imperial) .09"
Supplied ∅ D 4.8mm
Supplied ∅ D min. (imperial) .19"
Wall (WT) 0.85mm
Wall (WT) (imperial) .03"
Weight/Unit 0.016534kg
Designation as per VG-Norm VG 95343 T05 D 002 A
Dielectric Strength 20kV/mm
Dielectric Strength test method VG 95343-5
Elongation at break 450%
Elongation at break test method VG 95343-5
ELV compliant Dir. Art. 4 (2) YES
Flammability VG 95343-5
Halogen-free No
Hazardous Goods No
Minimum Shrink Temperature - °C +170 °C
Nato number 5970-12-154-2201
Operating Temperature -75 °C to +150 °C
Self extinguishing Yes
Specifications
Specifications VG 95343-5:2016-10
Tensile Strength 19MPa
Test Method Tensile Strength VG 95343-5
Volume Resistance 10¹¹ Ω cm
Water Absorption 1.30%
Country of Origin JP
Customs Number 39173200
GTIN-13 / EAN 4031026432632
Packaging 1 - Height (m) 0.06m
Packaging 1 - Length (m) 0.39m
Packaging 1 - Qty 60
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.00913
Packaging 1 - Weight (kg) 0.99204kg
Packaging 1 - Width (m) 0.39m
Packaging 3 - Height (m) 0.06m
Packaging 3 - Length (m) 0.405m
Packaging 3 - Qty 60
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0097
Packaging 3 - Weight (kg) 1.20204kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.224m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 3240
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.175
Packaging 4 - Weight (kg) 85.91kg
Packaging 4 - Width (m) 0.8m
Reel Length 60m
Reel Length (imperial) 196.85ft
ETIM 7.0 Key EC000217
ETIM 8.0 Key EC000217
ETIM 9.0 Key EC000217
UNSPSC Key 39121723
