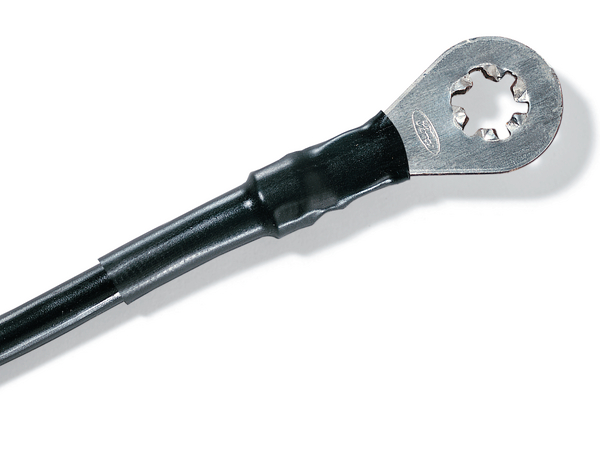

Heat shrinkable tubing 3:1 (12/4 mm), thin-wall, black, 100 m reel


Art.-No. 311-11200

| TC30 12-4-PO-X-BK

 |

Copied
  • Can cover components with highly variable diameters due to it's high shrink ratio (3:1)
  • Suitable for many applications where a low-cost solution is required
  • High shrink ratio inventory can be kept to a minimum as more applications can be covered with the same diameter tubing


Colour Black (BK)
Local order number TC30 12-4BK
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION TC30 12-4-PO-X-BK
Package Content 100m
Package Content packed in Reel
Product Family Thin wall shrink ratio 3:1
Product Group General Purpose Polyolefin tubing
Short Description Heat shrinkable tubing 3:1 (12/4 mm), thin-wall, black, 100 m reel
Shrink Ratio 3:1
Type TC30 12-4
Variant Thin-Wall
With inner glue (Yes/No) No
For Object Outside Diameter 5.6-10.4 mm
Length (L) 100.0m
Longitudinal Change After Shrinkage -15% max.
Recov. ⌀ d 4.0mm
Supplied ⌀ D 12.0mm
Wall (WT) 0.85mm
Dielectric Strength 19.7kV/mm
Flammability ASTM D2671
Minimum Shrink Temperature +90 °C
Operating Temperature -55 °C to +125 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
Country of Origin DE
Customs Number 39173200
GTIN-13 / EAN 4031026223896
Reel Length 100.0m
ETIM 7.0 Key EC000217
ETIM 8.0 Key EC000217
ETIM 9.0 Key EC000217
UNSPSC Key 39121723
