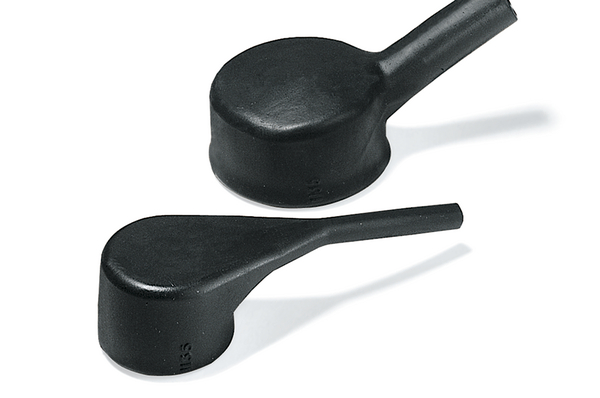

Right-Angle Shapes, VG style
Art.-No. 411-33007 | 1133-1-JW8-PO-X-BK Details

  • Use in applications of partially loaded connectors with small cable diameters
  • Tail design for easy orientation prior to cooling
  • Strain relief for connector cable

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, CHG900
Colour Black (BK)
Local order number 1133-1-JW8
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 1133-1-JW8-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 1100 Series, with rib, low profile, high ratio
Product Group Right-Angle Shapes, VG style
Type 1133-1-JW8
Variant For plug
Angle 90
Flexibility Flexible

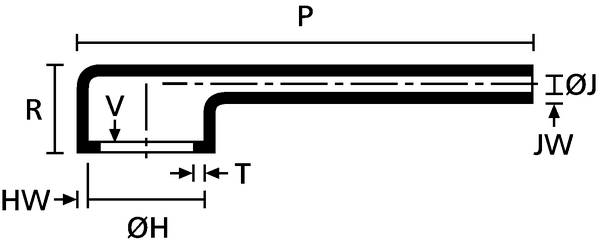

HW ± 20% 1.5mm

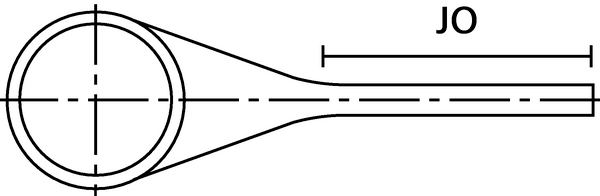

JO ± 10% 22mm
JW ± 20% 1.1mm
JW ± 30% 1.1mm
P ± 10% 45mm
R ± 10% 16mm
S nom 22mm
T ± 20% 1mm
V max 3.3mm
V ± 10% 3mm

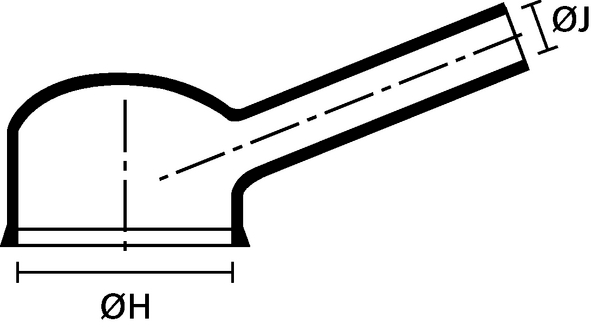

∅H max b 13mm
∅H min a 19mm
∅J max b 2mm
∅J min. a 6mm
Adhesive W8
Dielectric Strength 18kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Minimum Shrink Temperature - °C +135 °C
Nato number 5970-01-435-3637
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Shelf Life 5 years
Specifications
Tensile Strength 19MPa
Country of Origin GB
GTIN-13 / EAN 5022660413759
Packaging 1 - Height (m) 0.016m
Packaging 1 - Length (m) 0.150m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00024
Packaging 1 - Weight (kg) 0.003001kg
Packaging 1 - Width (m) 0.100m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
