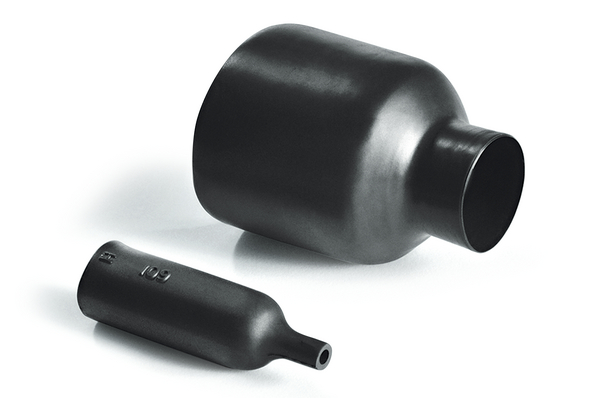

Bottle Shapes
Art.-No. 401-18008 | 118-1-HW17-PO-X-BK Details

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, CHG900
Colour Black (BK)
Local order number 118-1-HW17
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 118-1-HW17-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 100 Series
Product Group Bottle Shapes
Type 118-1-HW17
Flexibility Flexible

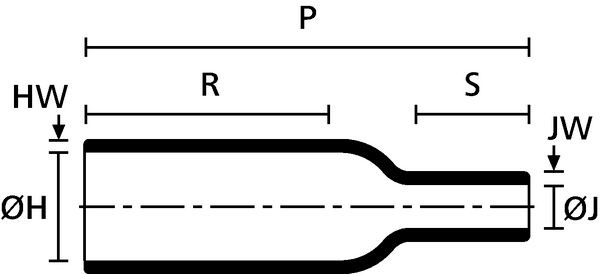

HW ± 20% 3.8mm
JW ± 30% 3.8mm
P ± 10% 150mm
R max 80mm
S nom 48.3mm
Weight/Unit 0.076kg

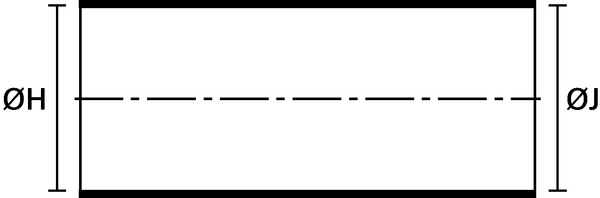

∅H max b 44.4mm
∅H min a 66mm
∅J max b 20.3mm
∅J min. a 66mm
Adhesive W17
Dielectric Strength 15kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Halogen-free Yes
Minimum Shrink Temperature - °C +135 °C
Operating Temperature -55 °C to +105 °C
ROHS compliant Yes
Specifications
Tensile Strength 10MPa
Country of Origin GB
Packaging 1 - Height (m) 0.080m
Packaging 1 - Length (m) 0.210m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00353
Packaging 1 - Weight (kg) 0.082kg
Packaging 1 - Width (m) 0.210m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
