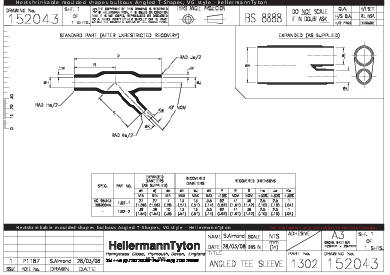

Angled T-Shapes, VG style : 1302-1-G
Helashrink 1300 Series, 30° & 45° angleArticle number: 413-02025
Features
- Branching part 45 Y-joint
- Mechanical tension relief for cable harnesses
Certifications & Approvals
Application
Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
More products in this product group
Angled T-Shapes, VG style >| Colour | Black (BK) |
| Pack Cont. | 1pc. |
| Package Quantity per | Bag |
| PART DESCRIPTION | 1302-1-G-PO-X-BK |
| Product Family | Helashrink 1300 Series, 30° & 45° angle |
| Product Group | Angled T-Shapes, VG style |
| Type | 1302-1-GA1 |
| Variant | For 2-core cables |
|
|
|
| Angle | 45° |
| Flexibility | Semi rigid |
| HW ± 20% | 2.5mm |
| HW ± 30% | 2.5mm |
| JW ± 20% | 2.5mm |
| JW ± 30% | 2.5mm |
| KW ± 20 % | 1mm |
| P ± 10% | 92mm |
| R nom | 41mm |
| R ± 10% | 41mm |
| S nom | 36mm |
| S ± 10% | 36mm |
| ∅H max b | 13mm |
| ∅H min a | 27mm |
| ∅J max b | 13mm |
| ∅J min. a | 27mm |
| ∅K max. b | 3.5mm |
| ∅K min. a | 7mm |
| Dielectric Strength | 14 kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| Flammability | ASTM D635 |
| Material | Polyolefin, cross-linked (PO-X) |
| Minimum Shrink Temperature - °C | +135 °C |
| Operating Temperature - °C | -75 °C to +150 °C |
| Specifications |
|
| EAN / GTIN | 5022660653964 |
| ETIM 6.0 | EC002464 |
| ETIM 7.0 Key | EC002464 |
