Helashrink 1300 Series, 30° & 45° angle
Art.-No. 413-03001 | 1303-1-B7-PO-X-BK | Details

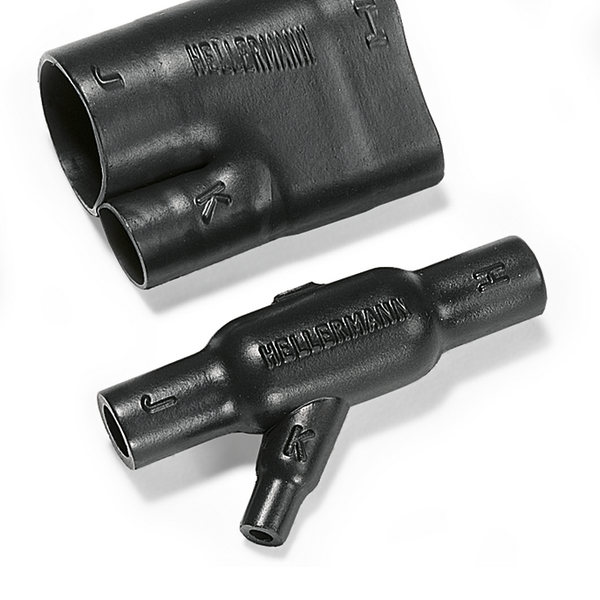

1303-1-G supplied / fully recovered.

Branching part 45 Y-joint
Mechanical tension relief for cable harnesses

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Angled T-Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool	H6100, CHG900
Colour	Black (BK)
Local order number	1303-1-B7
Material	Polyolefin, cross-linked (PO-X)
Pack Cont.	1pc.
Package Content packed in	Bag
PART DESCRIPTION	1303-1-B7-PO-X-BK
Product Family	Helashrink 1300 Series, 30° & 45° angle
Product Group	Angled T-Shapes, VG style
Variant	For 2-core cables

Product Dimensions


Angle	45°
Flexibility	Semi rigid
HW ± 20%	1.5mm
HW ± 30%	1.5mm
JW ± 20%	1.5mm
JW ± 30%	1.5mm
KW ± 20 %	1.5mm
P ± 10%	145mm
R nom	70mm
R ± 10%	70mm
S nom	54mm
S ± 10%	54mm
Weight/Unit	0.024kg
∅H max b	14mm
∅H min a	27mm
∅J max b	14mm
∅J min. a	27mm
∅K max. b	7.5mm
∅K min. a	13mm

Downloads

Specifications

Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature - °C	+135 °C
Nato number	5970-99-718-7808
Operating Temperature	-70 °C to +150 °C
Shelf Life	5 years
Specifications
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660423529
Packaging 1 - Height (m)	0.050m
Packaging 1 - Length (m)	0.200m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.0014m³
Packaging 1 - Weight (kg)	0.024001kg
Packaging 1 - Width (m)	0.140m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
