Angle Elbow Shapes


Art.-No. 414-06005

| 1406-1-J-PO-X-BK

 |

Copied
1694857

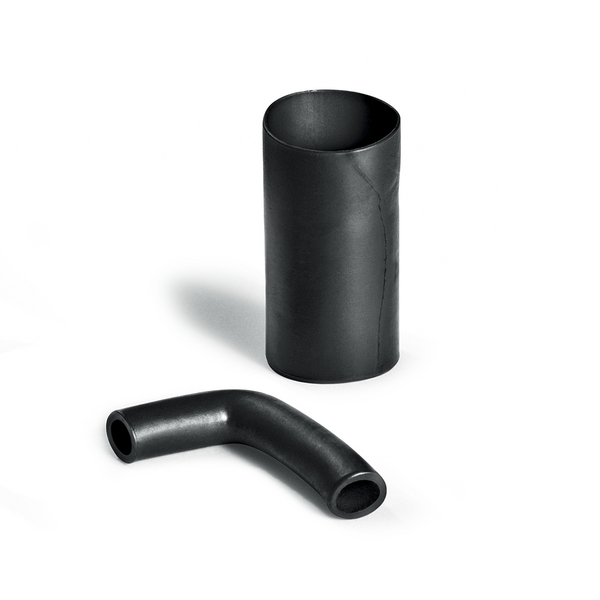

a: Expanded form (supplied)
b: Fully recovered form (after heating)
1403-1 supplied / fully recovered.

    • Provides strain relief and mechanical protection on cable orientations of up to 90°
    • Efficient design and numerous material/adhesive combinations
    • Provide quick and easy installation across a range of applications
    Add to watchlist
    Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Local order number 1406-1-J
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1406-1-J-PO-X-BK
    Package Content 1pc.
    Package Content packed in Bag
    Product Family Helashrink 1400 Series, 90° angle
    Product Group Angle Elbow Shapes
    Type 1406-1-J
    UV-Stabilised No
    Weight/Unit 0.026kg
    ⌀H max b 7.9mm
    ⌀H min a 20mm
    ⌀J max b 7.9mm
    ⌀J min. a 20mm
    Angle 90
    Flexibility Flexible
    For Object Outside Diameter 10.32-17.58 mm
    HW ± 20% 1.5mm
    JW ± 20% 1.5mm
    P ± 10% 45mm
    R ± 10% 15mm
    Tube Shape Angle
    W ± 20 % 1.5mm
    Flammability ASTM D635
    Minimum Shrink Temperature +135 °C
    Operating Temperature -55 °C to +135 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Tensile Strength 19MPa
    Country of Origin GB
    GTIN-13 / EAN 5022660428128
    Packaging 1 - Height (m) 0.020m
    Packaging 1 - Length (m) 0.160m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00032m³
    Packaging 1 - Weight (kg) 0.026001kg
    Packaging 1 - Width (m) 0.100m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
