24/06/2026

Connector Cover for Min-D Series


Art.-No. 415-07002

| 1507-1-B7-PO-X-BK

 |

Copied
1694870
a: Expanded form (supplied)
a: Expanded form (supplied)

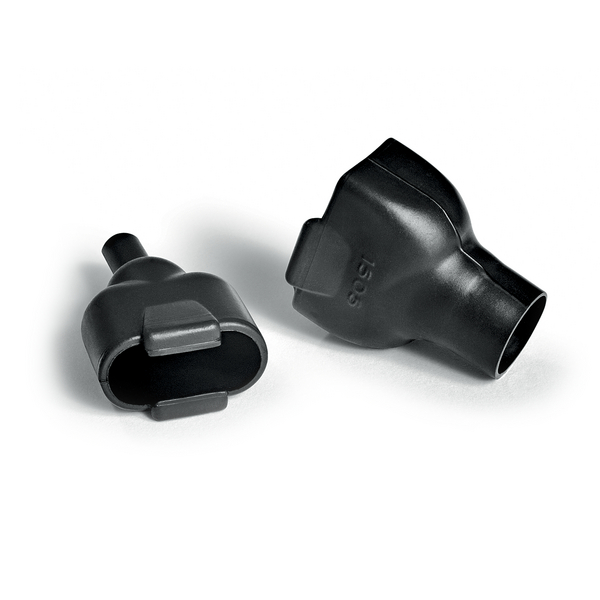

1505-1 supplied / fully recovered.
b: Fully recovered form (after heating)
b: Fully recovered form (after heating)

    • Provides strain relief and mechanical protection for Min-D series connectors
    • Unique design allows perfect orientation on installation
    • Can be supplied with or without lips
    Add to watchlist
    Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Local order number 1507-1-B7
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1507-1-B7-PO-X-BK
    Package Content 1pc.
    Package Content packed in Bag
    Product Family Helashrink 1500 Series, with top entry
    Product Group Connector Cover for Min-D Series
    Type 1507-1-B7
    UV-Stabilised No
    Weight/Unit 0.005kg
    ⌀H max b 42.2mm
    ⌀H min a 42.1mm
    ⌀J max b 10.7mm
    ⌀J min. a 10.7mm
    ⌀K max. b 8.1mm
    ⌀K min. a 13.9mm
    Flexibility Semi rigid
    For Object Outside Diameter 42.18-42.12 mm
    P ± 10% 45mm
    R ± 10% 25.4mm
    Tube Shape Specialty
    W ± 20 % 1.0mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Nato number 5935-00-068-5190
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660429897
    Packaging 1 - Height (m) 0.020m
    Packaging 1 - Length (m) 0.160m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00032m³
    Packaging 1 - Weight (kg) 0.005001kg
    Packaging 1 - Width (m) 0.100m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
