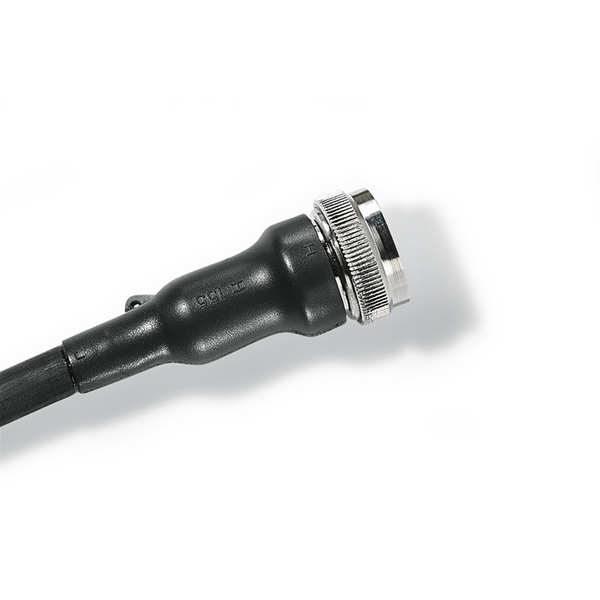

Bottle Shapes, VG style
Art.-No. 401-55018 | 155-42-H-PO-X-BK Details

  • Use in conjunction with circular grooved adaptors
  • Strengthened strain relief by usage of an additional inner lip
  • Excellent protection against environment impacts
  • Eliminates moisture ingress to harness

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour Black (BK)
Local order number 155-42-H
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 155-42-H-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 150 Series, with rib
Product Group Bottle Shapes, VG style
Type 155-42-H
Variant For plug
Flexibility Flexible
HW ± 20% 1.8mm
JW ± 20% 1mm
JW ± 30% 1.0mm
P ± 10% 67mm
R nom 35mm
R ± 10% 35mm
S nom 18mm
S ± 10% 18mm
T ± 20% 1mm
Weight/Unit 0.007kg
∅H max b 10.5mm
∅H min a 31mm
∅J max b 6mm
∅J min. a 24mm
Dielectric Strength 15kV/mm
Minimum Shrink Temperature +135 °C
Nato number 5970-99-780-0445
ROHS compliant Yes
Shelf Life 5 years
Specifications
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660432699
Minimum Order Quantity 25
Packaging 1 - Height (m) 0.040m
Packaging 1 - Length (m) 0.120m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00048
Packaging 1 - Weight (kg) 0.007001kg
Packaging 1 - Width (m) 0.100m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
