Bottle Shapes, VG style
Art.-No. 401-56076 | 156-41-H-PO-X-BK |

Copied

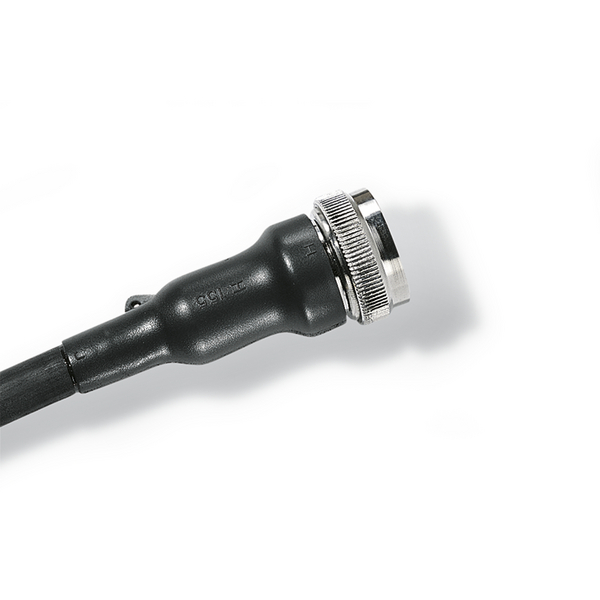

150 Series boot recovered onto a connectors.
150 Series supplied.
a: Expanded form (supplied)
b: Fully recovered form (after heating)

    • Use in conjunction with circular grooved adaptors
    • Strengthened strain relief by usage of an additional inner lip
    • Excellent protection against environment impacts
    • Eliminates moisture ingress to harness
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Local order number 156-41-HW21
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 156-41-H-PO-X-BK
    Package Content 1pc.
    Package Content packed in Bag
    Product Family Helashrink 150 Series, with rib
    Product Group Bottle Shapes, VG style
    Type 156-41-H
    UV-Stabilised No
    Variant For plug
    Weight/Unit 0.008kg
    ⌀H max b 22.5mm
    ⌀H min a 36mm
    ⌀J max b 8.5mm
    ⌀J min. a 36mm
    HW ± 20% 2.0mm
    JO ± 10% 20.0mm
    JW ± 20% 1.0mm
    JW ± 30% 1.0mm
    P ± 10% 60mm
    R nom 22mm
    R ± 10% 22mm
    S nom 20mm
    T ± 20% 1.0mm
    V max 3.3mm
    V ± 10% 3.0mm
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660662386
    Minimum Order Quantity 25
    Packaging 1 - Height (m) 0.040m
    Packaging 1 - Length (m) 0.120m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00048m³
    Packaging 1 - Weight (kg) 0.008001kg
    Packaging 1 - Width (m) 0.100m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
    Heat shrink tubing Heat shrink tubing

    Heat shrink tubing

    You are looking for the heat shrink tubing meeting your application requirements best? The key factors to which we owe our success are the unique and quite specific properties of our heat shrink tubing.
