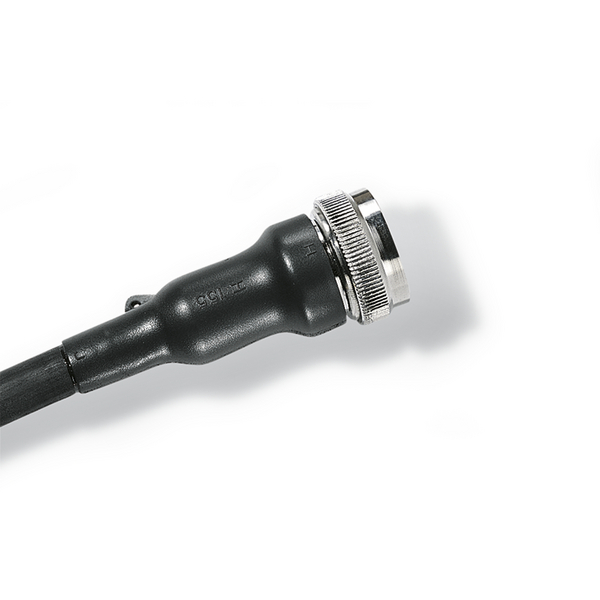

Bottle Shapes, VG style
Art.-No. 401-56009 | 156-42-B7-PO-X-BK Details

  • Use in conjunction with circular grooved adaptors
  • Strengthened strain relief by usage of an additional inner lip
  • Excellent protection against environment impacts
  • Eliminates moisture ingress to harness

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, CHG900
Colour Black (BK)
Local order number 156-42-B7
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 156-42-B7-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 150 Series, with rib
Product Group Bottle Shapes, VG style
Type 156-42-B7
Variant For plug
HW ± 20% 2mm
JW ± 30% 1mm
P ± 10% 80mm
R nom 42mm
S nom 20mm
T ± 10% 1mm
T ± 20% 1.0mm
V ± 10% 3.0mm
Weight/Unit 0.008kg
∅H max b 22.5mm
∅H min a 36mm
∅J max b 8.5mm
∅J min. a 36mm
Nato number 5970-99-766-9383, 5970-99-011-2768
ROHS compliant Yes
Shelf Life 5 years
Specifications
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660433146
Packaging 1 - Height (m) 0.040m
Packaging 1 - Length (m) 0.120m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00048
Packaging 1 - Weight (kg) 0.008001kg
Packaging 1 - Width (m) 0.100m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
