Bottle Shape with Rib VG-Style for Plugs black, PO-X, up to 4,5:1
Art.-No. 401-58880 | 158-42-G-PO-X-BK Details

  • Use in conjunction with circular grooved adaptors
  • Strengthened strain relief by usage of an additional inner lip
  • Excellent protection against environment impacts
  • Eliminates moisture ingress to harness

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, E4500, CHG900
Colour Black (BK)
Local order number VG95343T06B007A
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 158-42-G-PO-X-BK
Pack Cont. 1pc.
Package Content packed in pcs.
Product Family Helashrink 150 Series, with rib
Product Group Bottle Shapes, VG style
Short Description Bottle Shape with Rib VG-Style for Plugs black, PO-X, up to 4,5:1
Shrink Ratio up to 4.5:1
Type 158-42-G
Variant For plug
Flexibility Semi rigid

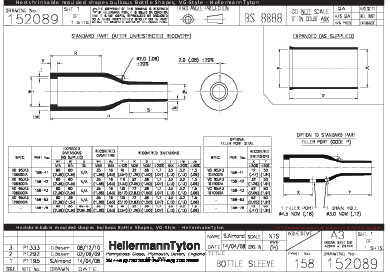

HW ± 20% 3.2mm
JO ± 10% 38.0mm
JW ± 20% 1.5mm
JW ± 30% 1.5mm
P ± 10% 110.0mm
R nom 52.0mm
R ± 10% 52.0mm
S nom 38.0mm
T ± 20% 1.7mm
V max 3.3mm
Weight/Unit 0.03502kg
∅H max b 35.0mm
∅H min a 60.0mm
∅J max b 16.0mm
∅J min. a 60.0mm
Designation as per VG-Norm VG 95343 T06 B 007 A
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
ELV compliant Dir. Art. 4 (2) YES
Flammability ASTM D635
Hazardous Goods No
Minimum Shrink Temperature - °C +135 °C
Nato number 5970-12-188-2766
Operating Temperature -75 °C to +150 °C
ROHS compliant Yes
Shelf Life 5 years
Specifications
Specifications VG 95343-6
Country of Origin GB
Customs Number 39174000
GTIN-13 / EAN 5022660634888
Packaging 1 - Height (m) 0.07m
Packaging 1 - Length (m) 0.21m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00309
Packaging 1 - Weight (kg) 0.035021kg
Packaging 1 - Width (m) 0.21m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
