Bottle Shapes, VG style

???product.artNr??? 401-58010

| 158-42-H-PO-X-BK

|

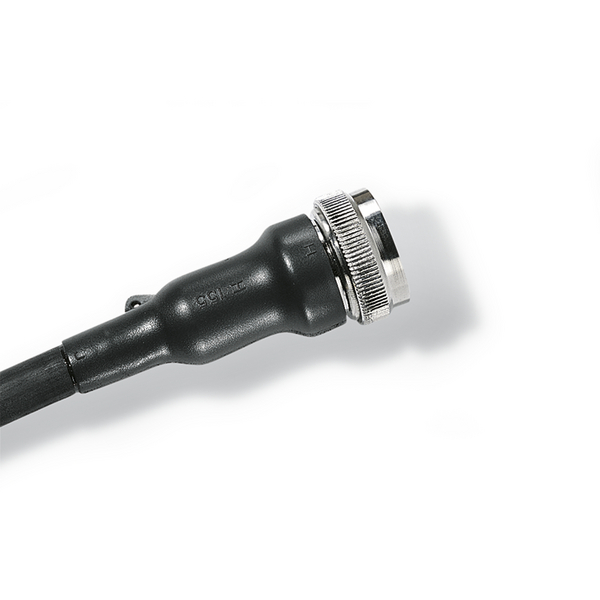

150 Series boot recovered onto a connectors.

Use in conjunction with circular grooved adaptors
Strengthened strain relief by usage of an additional inner lip
Excellent protection against environment impacts
Eliminates moisture ingress to harness

???myht.addtowatchlist???

???product.orderrequest.link???

???product.findnearby???

???downloads???

???product.productgroup.title???:

Bottle Shapes, VG style

Base Data

???product.application???	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	158-42-H
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	158-42-H-PO-X-BK
Package Content	1pc.
Package Content packed in	Bag
Product Family	Helashrink 150 Series, with rib
Product Group	Bottle Shapes, VG style
Type	158-42-H
UV-Stabilised	No
Variant	For plug
Weight/Unit	0.045kg

Product Dimensions


⌀H max b	35.0mm
⌀H min a	60mm
⌀J max b	16mm
⌀J min. a	60mm
For Object Outside Diameter	40-55 mm
HW ± 20%	3.2mm
JO ± 10%	38.0mm
JW ± 20%	1.0mm
JW ± 30%	1.5mm
P ± 10%	110mm
R nom	52mm
S nom	38mm
T ± 20%	1.7mm
Tube Shape	Bottle
V max	3.3mm

Specifications

ROHS compliant	Yes
Shelf Life	5 years
Specifications

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660434822
Minimum Order Quantity	25
Packaging 1 - Height (m)	0.040m
Packaging 1 - Length (m)	0.200m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00096m³
Packaging 1 - Weight (kg)	0.045001kg
Packaging 1 - Width (m)	0.120m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
