Bottle Shapes, VG style


Art.-No. 401-58025

| 158-43-J-PO-X-BK

 |

Copied
1694544
a: Expanded form (supplied)
150 Series supplied.

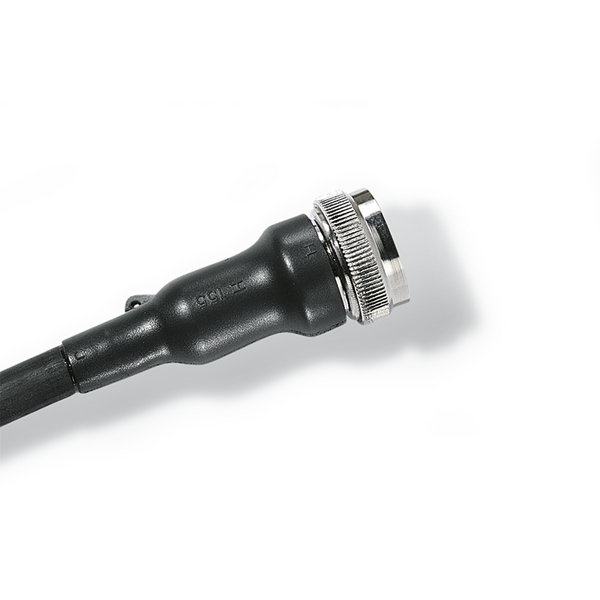

b: Fully recovered form (after heating)
150 Series boot recovered onto a connectors.

    • Use in conjunction with circular grooved adaptors
    • Strengthened strain relief by usage of an additional inner lip
    • Excellent protection against environment impacts
    • Eliminates moisture ingress to harness
    Add to watchlist
    Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Local order number 158-43-J
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 158-43-J-PO-X-BK
    Package Content 1pc.
    Package Content packed in Bag
    Product Family Helashrink 150 Series, with rib
    Product Group Bottle Shapes, VG style
    Type 158-43-J
    UV-Stabilised No
    Variant For plug
    Weight/Unit 0.056kg
    ⌀H max b 35.0mm
    ⌀H min a 60mm
    ⌀J max b 16mm
    ⌀J min. a 60mm
    For Object Outside Diameter 40-55 mm
    HW ± 20% 3.2mm
    JW ± 20% 1.0mm
    JW ± 30% 1.5mm
    P ± 10% 130mm
    R nom 72mm
    S nom 38mm
    T ± 20% 1.7mm
    Tube Shape Bottle
    V max 3.3mm
    Nato number 5970-01-081-6286
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660435126
    Packaging 1 - Height (m) 0.070m
    Packaging 1 - Length (m) 0.200m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00168m³
    Packaging 1 - Weight (kg) 0.056001kg
    Packaging 1 - Width (m) 0.120m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
