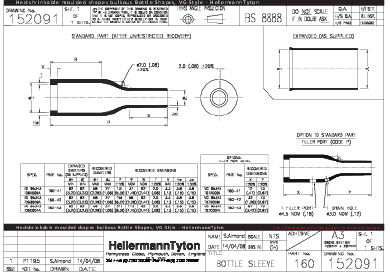

Bottle Shape with Rib VG-Style for Plugs black, PO-X
Art.-No. 401-60980
| 160-43-G-PO-X-BK
|
Copied
- Use in conjunction with circular grooved adaptors
- Strengthened strain relief by usage of an additional inner lip
- Excellent protection against environment impacts
- Eliminates moisture ingress to harness
Request quote
More products in this product group:
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Colour | Black (BK) |
| Local order number | VG95343T06C004A |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | 160-43-G-PO-X-BK |
| Package Content | 1pc. |
| Package Content packed in | pcs. |
| Product Family | Helashrink 150 Series, with rib |
| Product Group | Bottle Shapes, VG style |
| Short Description | Bottle Shape with Rib VG-Style for Plugs black, PO-X |
| Type | 160-43-G |
| Variant | For plug |
| Weight/Unit | 0.01kg |
|
|
|
| ⌀H max b | 58.0mm |
| ⌀H min a | 82.0mm |
| ⌀J max b | 27.0mm |
| ⌀J min. a | 82.0mm |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 62.8-77.2 mm |
| HW ± 20% | 3.8mm |
| JO ± 10% | 62.0mm |
| JW ± 20% | 3.8mm |
| JW ± 30% | 3.8mm |
| P ± 10% | 213.0mm |
| R nom | 113mm |
| R ± 10% | 113mm |
| S nom | 62.0mm |
| T ± 20% | 2.0mm |
| Tube Shape | Bottle |
| V max | 3.3mm |
| V ± 10% | 3.0mm |
| V ± 20% | 3.0mm |
| CAS Number | 84852-53-9 |
| Critical Substance | DBDPE |
| Designation as per VG-Norm | VG 95343 T06 C 004 A |
| Dielectric Strength | 14kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| EC Number | 284-366-9 |
| ELV compliant Dir. Art. 4 (2) | Yes |
| Flammability | ASTM D635 |
| Hazardous Goods | No |
| Minimum Shrink Temperature | +135 °C |
| Nato number | 5970-12-354-9462 |
| Operating Temperature | -75 °C to +150 °C |
| ROHS compliant | Yes |
| Shelf Life | 5 years |
| Specifications |
|
| Specifications | VG 95343-6 |
