Bottle Shapes, VG style : 176-1-G

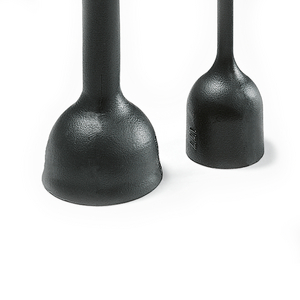

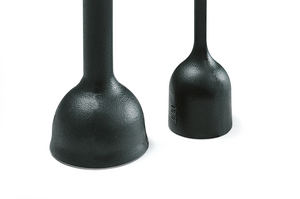

Bottle Shape with Rib VG-Style for Plugs black, PO-X, up to 4:1, Article number: 401-76180
Features
- Cable strain relief for partially loaded connectors
- Small cable diameters
- Use with our W24 adhesive for excellent chemical resistance
Certifications & Approvals
Application
Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications
Helashrink 170 Series, with rib is suitable for following markets and industries
More products in this product group
Bottle Shapes, VG style >| Application Tool | H6100, E4500 |
| Colour | Black (BK) |
| Pack Cont. | 1pc. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | 176-1-G-PO-X-BK |
| Product Family | Helashrink 170 Series, with rib |
| Product Group | Bottle Shapes, VG style |
| Short Description | Bottle Shape with Rib VG-Style for Plugs black, PO-X, up to 4:1 |
| Shrink Ratio | up to 4:1 |
| Type | VG95343T06D011A |
| Variant | For plug |
|
|
|

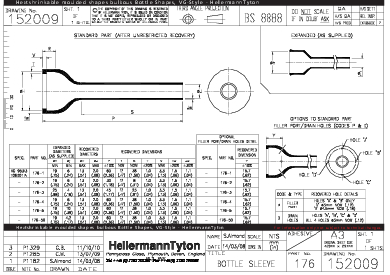

| Flexibility | Semi rigid |
| HW ± 20% | 1.5mm |
| JW nom | 1.1mm |
| JW ± 20% | 1.1mm |
| JW ± 30% | 1.1mm |
| P ± 10% | 60.0mm |
| R nom | 12.0mm |
| R ± 10% | 11.7mm |
| S nom | 38.0mm |
| T ± 10% | 1.0mm |
| T ± 20% | 1.0mm |
| V max | 3.3mm |
| V ± 20% | 3.3mm |
| ∅H max b | 13.0mm |
| ∅H min a | 19.3mm |
| ∅J max b | 2.1mm |
| ∅J min. a | 6.3mm |
| Designation as per VG-Norm | VG 95343 T06 D 011 A |
| Dielectric Strength | 14 kV/mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | ASTM D635 |
| Hazardous good | No |
| Material | Polyolefin, cross-linked (PO-X) |
| Minimum Shrink Temperature - °C | +135 °C |
| Nato number | K1793 |
| Operating Temperature - °C | -75 °C to +150 °C |
| Specifications |
|
| Specifications | DEF STAN 59-97/3, VG 95343-6:2009-12 |
| Tensile Strength | 15MPa |
|
|
|
| EAN / GTIN | 5022660635052 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.13m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00033m³ |
| Packaging 1 - Weight (kg) | 0.004kg |
| Packaging 1 - Width (m) | 0.1m |
| Packaging 3 - Height (m) | 0.27m |
| Packaging 3 - Length (m) | 0.6m |
| Packaging 3 - Qty | 400 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0648m³ |
| Packaging 3 - Weight (kg) | 4.9kg |
| Packaging 3 - Width (m) | 0.4m |
| Weight | 0.004kg |
| ETIM 6.0 | EC002464 |
| ETIM 7.0 Key | EC002464 |
