Angle Shapes
Art.-No. 418-07003 | 1807-4-G-PO-X-BK Details

  • Provides strain relief and mechanical protection for harness systems
  • Use in conjunction with a circular grooved adaptor

Request your individual offer now

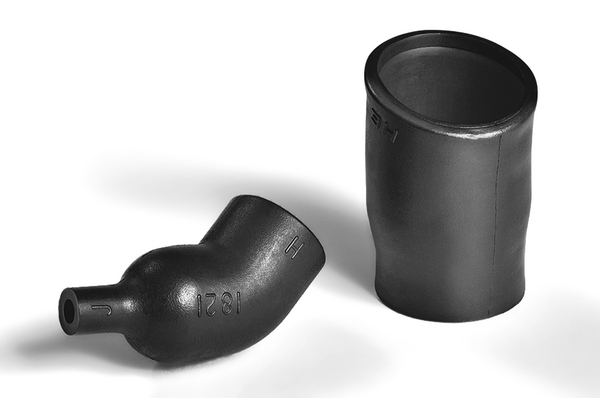

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, CHG900
Colour Black (BK)
Local order number 1807-4-G
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 1807-4-G-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 1800 Series, with rib, 30°, 45°, 60° angle
Product Group Angle Shapes
Type 1807-4-G

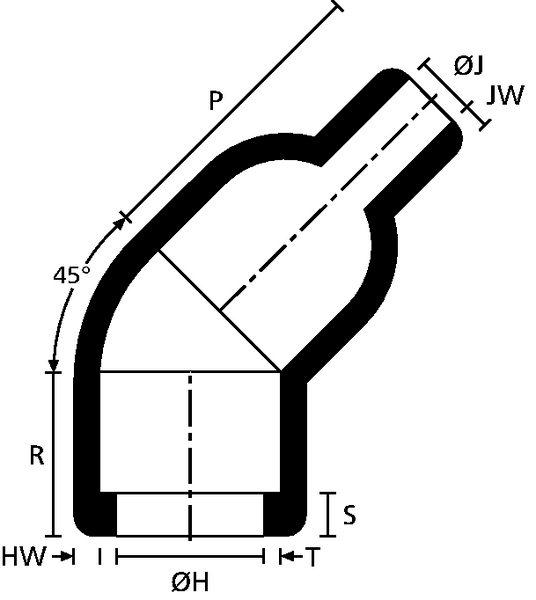

Angle 30
Flexibility Semi rigid
HW ± 20% 1.8mm
JO ± 10% 15.2mm
JW ± 20% 1.8mm
P ± 10% 43.2mm
R nom 10.2mm
R ± 10% 10.2mm
S nom 3.0mm
S ± 10% 3.0mm
T ± 10% 1.0mm
T ± 20% 1.0mm

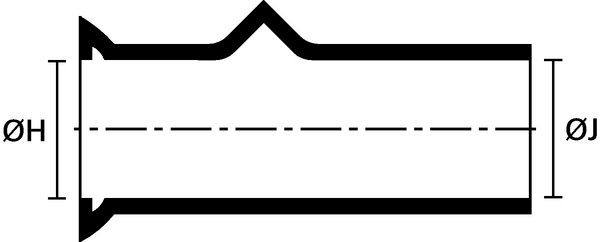

∅H max b 18.0mm
∅H min a 35.6mm
∅J max b 7.4mm
∅J min. a 35.6mm
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Hazardous Goods No
Minimum Shrink Temperature - °C +135 °C
Operating Temperature -70 °C to +150 °C
ROHS compliant Yes
Specifications
Tensile Strength 15MPa
UV-Stabilised No
Country of Origin GB
Customs Number 39174000
GTIN-13 / EAN 5022660441479
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
