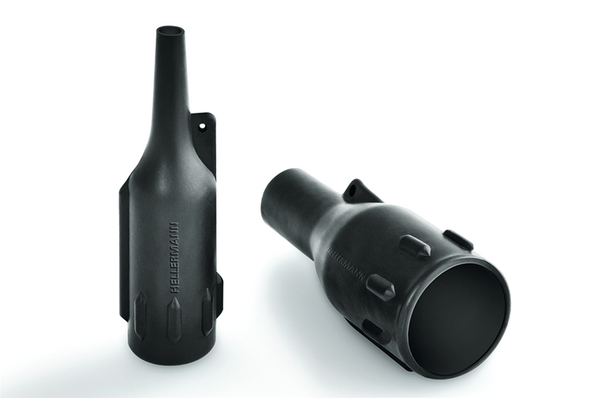

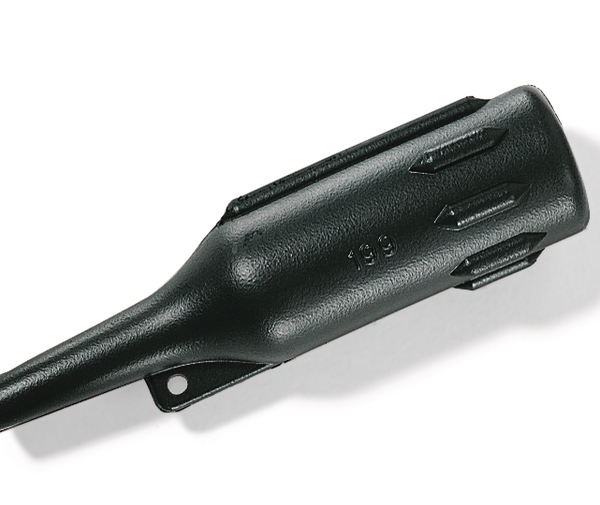

Bottle Shapes, VG style
Art.-No. 401-99004 | 199-4-GWM250-PO-X-BK Details

  • Specifically for small audio connectors
  • Multiple external ribs to improve grip in harsh conditions

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, E4500, CHG900
Colour Black (BK)
Local order number 199-4-GWM250
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 199-4-GWM250-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 190 Series, with external ribs
Product Group Bottle Shapes, VG style
Type 199-4-GWM250
Variant For plug

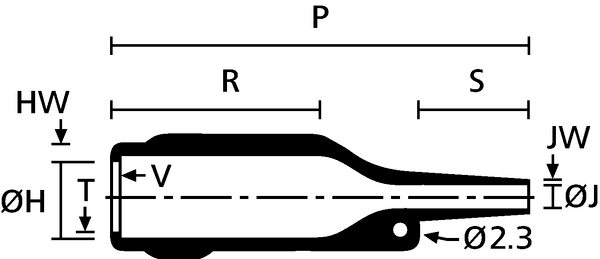

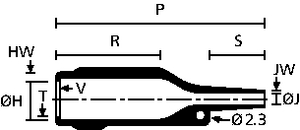

HW ± 20% 1.8mm
JW ± 20% 0.5mm
JW ± 30% .05mm
P ± 10% 70mm
R nom 35mm
R ± 10% 35mm
S nom 20mm
T ± 20% 1mm
V ± 10% 1.5mm

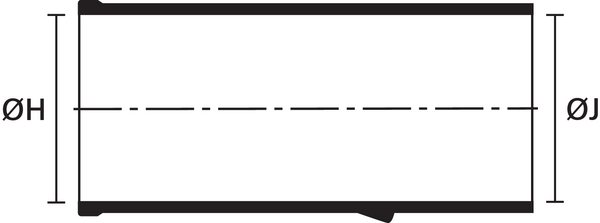

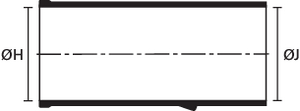

∅H max b 14mm
∅H min a 17.5mm
∅J max b 4.3mm
∅J min. a 7mm
Adhesive WM250
ELV compliant Dir. Art. 4 (2) YES
Minimum Shrink Temperature - °C +135 °C
Operating Temperature -55 °C to +175 °C
ROHS compliant Yes
Specifications
Tensile Strength 15MPa
Country of Origin GB
Customs Number 39174000
GTIN-13 / EAN 5022660442193
Packaging 1 - Qty 1
Packaging 1 - Weight (kg) 0.0040kg
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
