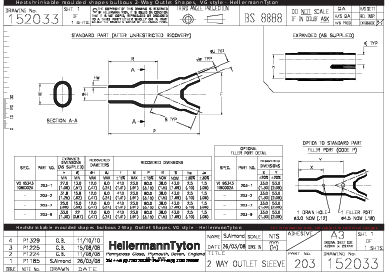

2-Way Outlet Shapes, VG style
Art.-No. 402-03035 | 203-1-G-PO-X-BK Details

  • Mechanical tension relief in cable harnesses

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, E4500, CHG900
Colour Black (BK)
Local order number 203-1-G
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 203-1-G-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 200 Series
Product Group 2-Way Outlet Shapes, VG style
Type 203-1-G
Variant For 2-core cables
HW ± 30% 2.5mm
JW nom 1.5mm
JW/KW ± 30% 1.5mm
P ± 10% 80mm
P ± 15%=overall length 80mm
R nom 38mm
R ± 10% 43mm
S nom 43mm
∅H max b 12mm
∅H min a 27mm
∅J max b 6mm
∅J min. a 13mm
∅J/K max. b 6mm
∅J/K min. a 13mm
∅K max. b 6mm
∅K min. a 13mm
Dielectric Strength 15kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Nato number 5970-01-198-2859, 5970-12-199-9000, 5970-99-313-4316
Operating Temperature -75 °C to +150 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660443626
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
