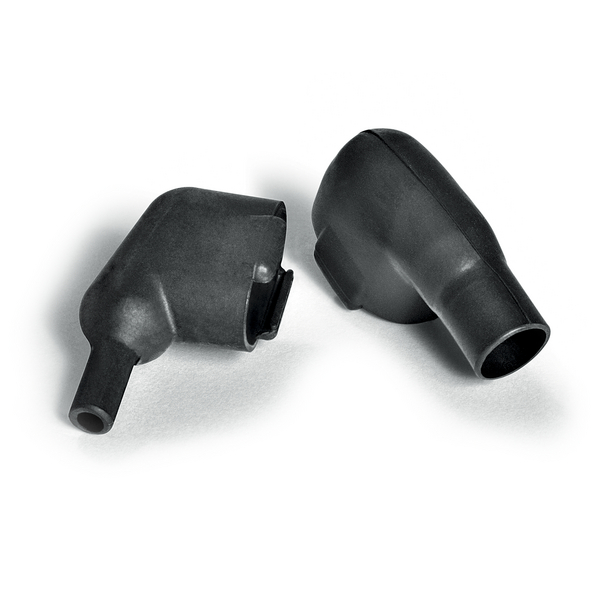

Helashrink 2100 Series, with 90° entry
Art.-No. 421-02001 | 2102-1-B7-PO-X-BK Details

  • Provides strain relief and mechanical protection for Min-D series connectors
  • Unique design allows perfect 90° orientation on installation
  • Can be supplied with or without lips in a range of material and adhesive combinations to suit most applications

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, CHG900
Colour Black (BK)
Local order number 2102-1-B7
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 2102-1-B7-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 2100 Series, with 90° entry
Product Group Connector Cover for Min-D Series
Type 2102-1-B7
Angle 90
Flexibility Semi rigid
P nom. 30.7mm
P ± 10% 30.7mm
R nom 24.6mm
R ± 10% 24.6mm
S ± 10% 18.5mm
V ± 10% 15mm
W ± 20 % 1mm
∅H max b 28.2mm
∅H min a 28.1mm
∅J max b 10.7mm
∅J min. a 10.6mm
∅K max. b 5.3mm
∅K min. a 10.1mm
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
Minimum Shrink Temperature - °C +135 °C
Nato number 5970-99-222-4165, 5935-00-911-5930
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Specifications
Tensile Strength 13MPa
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660444920
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
