Helashrink 200 Series, in line, low voltage
Art.-No. 402-16019 | 216-3-G-PO-X-BK Details

  • Easy, time-saving insulation of cable branch point where it splits into single wires
  • Adhesive is applied to relieve mechanical tension in cable harnesses

Request your individual offer now

Application Cable breakouts are manufactured from a tough cross-linked flame retarded polyolefin. This allows the breakouts to be used for both interior and exterior applications. The adhesive liner offers excellent electrical and mechanical protection and are available for 2, 3, 4, 5 and 6 core cables.
Application Tool H6100, E4500, CHG900
Colour Black (BK)
Local order number 216-3-G
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 216-3-G-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 200 Series, in line, low voltage
Product Group 2-Way Outlet Shapes, Breakout Boots
Shrink Ratio up to 3:1
Type 216-3-G
Variant For 2-core cables
Bundle Diameter max (metric) 10.0mm
Bundle ∅ min. 2.5mm
Flexibility Semi rigid
HW ± 20% 1.59mm
JW ± 20% 1.59mm
P ± 10% 76.5mm
R ± 10% 20mm
Weight/Unit 0.007kg

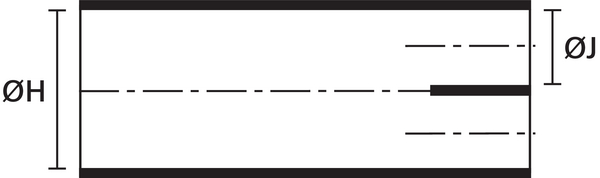

∅H max b 9.39mm
∅H min a 21mm
∅J max b 2.79mm
∅J min. a 9mm
Dielectric Strength 15kV/mm
ELV compliant Dir. Art. 4 (2) YES
Flammability ASTM D635
Hazardous Goods No
Minimum Shrink Temperature - °C +135 °C
Operating Temperature -55 °C to +70 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 39174000
GTIN-13 / EAN 5022660446825
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.215m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00084
Packaging 1 - Weight (kg) 0.007001kg
Packaging 1 - Width (m) 0.156m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
