Low Profile Shim Boot without Adapter Lip black
Art.-No. 422-10200 | 313E455-9-PO-X-BK Details

  • Used to build up or shim a cable diameter
  • Facilitates better fit for components in cable harness

Request your individual offer now

Application Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications
Application Tool H6100, E4500, CHG900
Colour Black (BK)
Local order number 313E455-9
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 313E455-9-PO-X-BK
Pack Cont. 5pcs.
Package Content packed in Bag
Product Family Helashrink 313E Series, without adapter lip
Product Group Low Profile Shim Boots
Short Description Low Profile Shim Boot without Adapter Lip black
Shrink Ratio 3:1
Type 313E455-9
Variant For 3-core cables
Flexibility Flexible

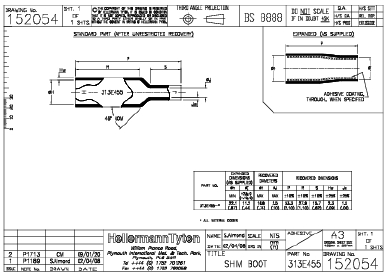

HO ± 10% 27.9mm
HW ± 25% 2.3mm
JO ± 10% 15.7mm
JW ± 25% 1.5mm
P ± 10% 53.3mm
R ± 10% 27.9mm
S ± 10% 15.7mm
Weight/Unit 0.003kg
∅H max b 22.1mm
∅H min a 22.1mm
∅J max b 3.3mm
∅J min. a 11.2mm
Dielectric Strength 20kV/mm
Dielectric Strength test method ASTM D2671
ELV compliant Dir. Art. 4 (2) YES
Flammability ASTM D635
Hazardous Goods No
Minimum Shrink Temperature - °C +100 °C
Operating Temperature -55 °C to 120 °C
ROHS compliant Yes
Specifications
Tensile Strength 12MPa
UV-Stabilised No
Country of Origin GB
Customs Number 39174000
GTIN-13 / EAN 5022660453694
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.1m
Packaging 1 - Qty 5
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0009
Packaging 1 - Weight (kg) 0.015001kg
Packaging 1 - Width (m) 0.18m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
