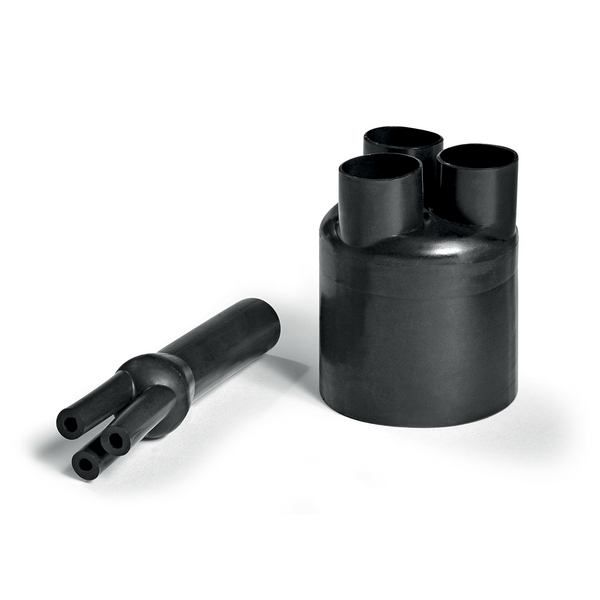

3-Way Outlet Shapes, Breakout Boots
Art.-No. 403-28023 | 328-2-H-PO-X-BK Details

  • Easy, time-saving insulation of cable branch point where it splits into single wires
  • Adhesive is applied to relieve mechanical tension in cable harnesses

Request your individual offer now

Application Cable breakouts are manufactured from a tough cross-linked flame retarded polyolefin. This allows the breakouts to be used for both interior and exterior applications. The adhesive liner offers excellent electrical and mechanical protection and are available for 2, 3, 4, 5 and 6 core cables.
Colour Black (BK)
Local order number 328-2-H
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 328-2-H-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 300 Series, in line, low voltage
Product Group 3-Way Outlet Shapes, Breakout Boots
Shrink Ratio up to 3:1
Type 328-2-H
Variant For 3-core cables
Flexibility Flexible
HW ± 20% 3.81mm
JW ± 20% 3.81mm
P ± 10% 99mm
R ± 10% 34mm
∅H max b 22.8mm
∅H min a 44mm
∅J max b 7.6mm
∅J min. a 21mm
Dielectric Strength 15kV/mm
Flammability ASTM D635
Halogen-free Yes
Minimum Shrink Temperature +135 °C
Operating Temperature -55 °C to +105 °C
ROHS compliant Yes
Specifications
Tensile Strength 10MPa
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660655111
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
