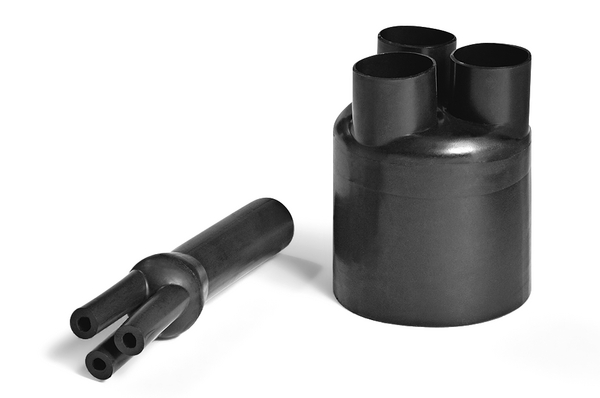

3-Way Outlet Shapes, Breakout Boots
Art.-No. 403-40004 | 340-2-B7W1-PO-X-BK Details

Request your individual offer now

Application Cable breakouts are manufactured from a tough cross-linked flame retarded polyolefin. This allows the breakouts to be used for both interior and exterior applications. The adhesive liner offers excellent electrical and mechanical protection and are available for 2, 3, 4, 5 and 6 core cables.
Application Tool H6100, E4500, CHG900
Colour Black (BK)
Local order number 340-2-B7W1
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 340-2-B7W1-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 300 Series, in line, low voltage
Product Group 3-Way Outlet Shapes, Breakout Boots
Shrink Ratio up to 3:1
Type 340-2-B7W1
Variant For 3-core cables
Flexibility Semi rigid

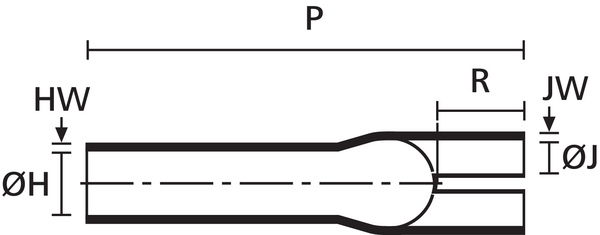

HW ± 20% 4.45mm
JW ± 20% 4.45mm
P ± 10% 144.5mm
R ± 10% 45.5mm

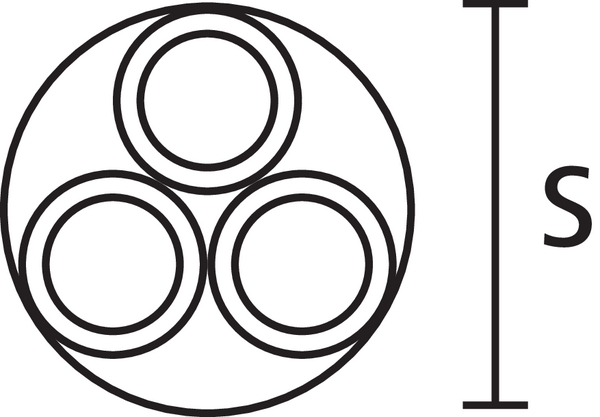

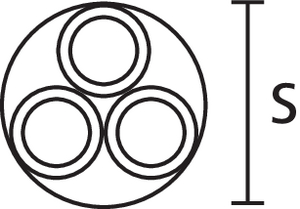

S nom 65mm

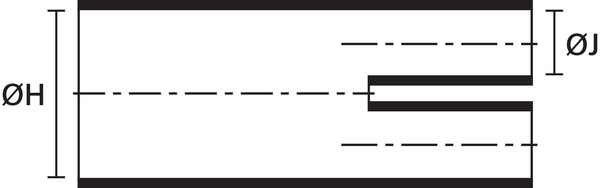

∅H max b 50.8mm
∅H min a 82mm
∅J max b 19mm
∅J min. a 36mm
Adhesive W1
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Minimum Shrink Temperature - °C +135 °C
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Specifications
Tensile Strength 13MPa
Country of Origin GB
GTIN-13 / EAN 5022660457784
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
