3-Way Outlet Shapes, Breakout Boots 355-1-B8W

Helashrink 300 Series, in line, low voltage, Article number: 403-55005

300 Series supplied / fully recovered.

Features

  • Easy, time-saving insulation of cable branch point where it splits into single wires
  • Adhesive is applied to relieve mechanical tension in cable harnesses

Certifications & Approvals

Application

Cable breakouts are manufactured from a tough cross-linked flame retarded polyolefin. This allows the breakouts to be used for both interior and exterior applications. The adhesive liner offers excellent electrical and mechanical protection and are available for 2, 3, 4, 5 and 6 core cables.

Helashrink 300 Series, in line, low voltage is suitable for following markets and industries

Application Tool H5002, H5004, E4500
Colour Black (BK)
GLOBAL PART DESCRIPTION 355-1-B8W-PO-X-BK
Pack Cont. 1pc.
Package Quantity per Bag
Product Family Helashrink 300 Series, in line, low voltage
Product Group 3-Way Outlet Shapes, Breakout Boots
Shrink Ratio up to 3:1
Type 319-2-B7.W1
Variant For 3-core cables
Bundle ∅ max. 240mm
Bundle ∅ min. 150mm
Flexibility Semi rigid

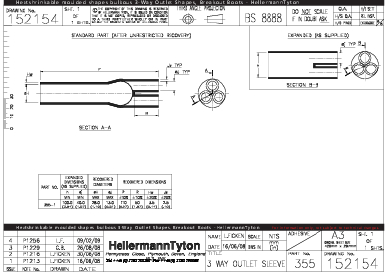

HW ± 20% 3.5mm
JW ± 20% 2.5mm
P ± 10% 210mm
R ± 10% 50mm
∅H max b 28mm
∅H min a 100mm
∅J max b 13mm
∅J min. a 40mm
Adhesive WM250
Dielectric Strength 15 kV/mm
Flammability ASTM D635
Material Polyolefin, cross-linked (PO-X)
Minimum Shrink Temperature - °C +135 °C
Operating Temperature - °C -55 °C to +100 °C
Specifications
Tensile Strength 15MPa
EAN / GTIN 5022660666506
ETIM 5.0 EC002464
ETIM 6.0 EC002464
