Low Profile Transition Boots : 412H622-8
Helashrink 412H Series, side breakoutArticle number: 422-40017
Features
- Connector cable strain relief
- Used with circular adaptors
Certifications & Approvals
Application
Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications
More products in this product group
Low Profile Transition Boots >| Application Tool | H6100, E4500 |
| Colour | Black (BK) |
| Pack Cont. | 5pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | 412H622-8-PEEX-BK |
| Product Family | Helashrink 412H Series, side breakout |
| Product Group | Low Profile Transition Boots |
| Shrink Ratio | 3:1 |
| Type | 412H622-8 |
| Variant | For 2-core cables |
|
|
| Flexibility | Semi rigid |

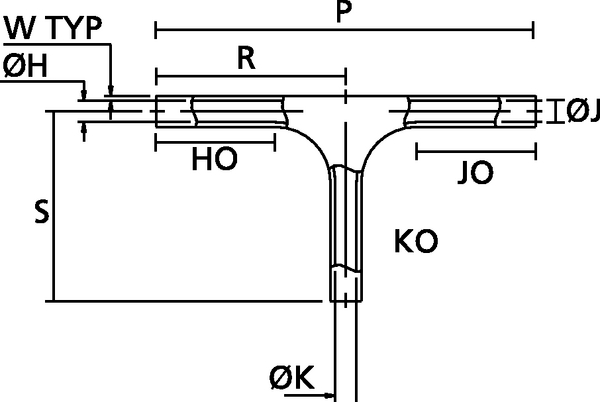

| HO/JO/KO ± 10% | 25.4mm |
| P nom. | 8.7mm |
| R/S nom | 4.3mm |
| W nom. | 1mm |
| ∅H max b | 6.6mm |
| ∅H min a | 19.8mm |
| ∅J max b | 8.1mm |
| ∅J min. a | 17.7mm |
| Dielectric Strength | 20 kV/mm |
| Dielectric Strength test method | IEC 243 |
| Flammability | ASTM D635 |
| Material | Polyester elastomer cross-linked (PEEX) |
| Minimum Shrink Temperature - °C | +100 °C |
| Operating Temperature - °C | -55 °C to 120 °C |
| Specifications |
|
| EAN / GTIN | 5022660669484 |
| ETIM 6.0 | EC002464 |
| ETIM 7.0 Key | EC002464 |
