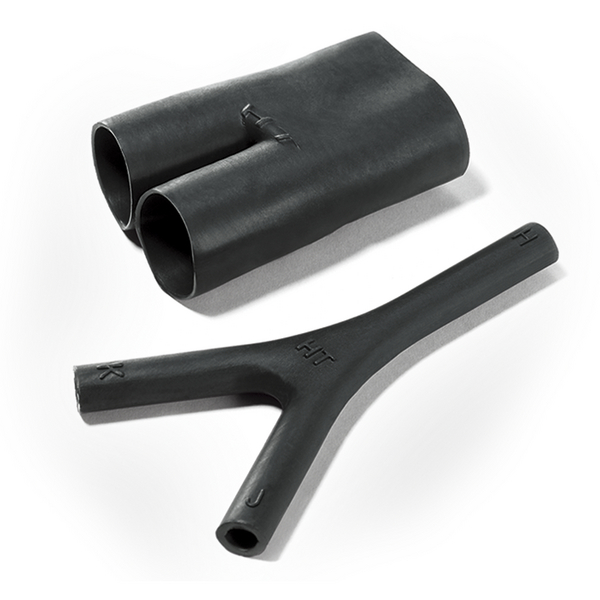

Low Profile Transition Boots
Art.-No. 422-50121
| 492H413-8-PEEX-BK
|
Copied
- For cable harness breakouts or transitions
- Strain relief, sealing and mechanical protection
Request quote
More products in this product group:
| Colour | Black (BK) |
| Local order number | 492H413-8 |
| Material | Polyester elastomer cross-linked (PEEX) |
| PART DESCRIPTION | 492H413-8-PEEX-BK |
| Package Content | 5pcs. |
| Package Content packed in | Bag |
| Product Family | Helashrink 492H Series, 1 to 2 cables |
| Product Group | Low Profile Transition Boots |
| Shrink Ratio | 3:1 |
| Type | 492H413-8 |
| Typical Application | military and general performance harnessing |
| UV-Stabilised | No |
| Variant | For 2-core cables |
| Weight/Unit | 0.014kg |
|
|
|
| ⌀H max b | 11.4mm |
| ⌀H min a | 34.2mm |
| ⌀J max b | 11.4mm |
| ⌀J min. a | 22.8mm |
| ⌀J/K max. b | 11.4mm |
| ⌀J/K min. a | 22.8mm |
| ⌀K max. b | 11.4mm |
| ⌀K min. a | 22.8mm |
| Flexibility | Flexible |
| For Object Outside Diameter | 15.96-29.64 mm |
| HO/JO/KO ± 15% | 41.1mm |
| P nom. | 62.9mm |
| P ± 10% | 121.4mm |
| P,R&S nom b | 62.9mm |
| Tube Shape | Angle |
| W nom. | 1.3mm |
