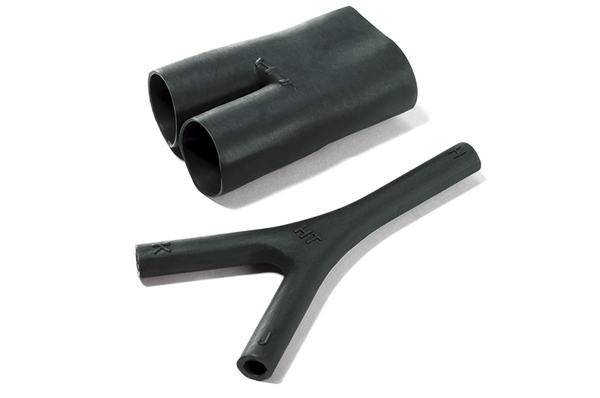

Low Profile Transition Boots
Art.-No. 422-50103 | 492H413-PO-X-BK Details

Request your individual offer now

Application military and general performance harnessing
Application Tool H6100, E4500, CHG900
Colour Black (BK)
Local order number 492H413-9-200
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 492H413-PO-X-BK
Pack Cont. 5pcs.
Package Content packed in Bag
Product Family Helashrink 492H Series, 1 to 2 cables
Product Group Low Profile Transition Boots
Shrink Ratio 3:1
Type 492H413
Variant For 2-core cables
Flexibility Flexible

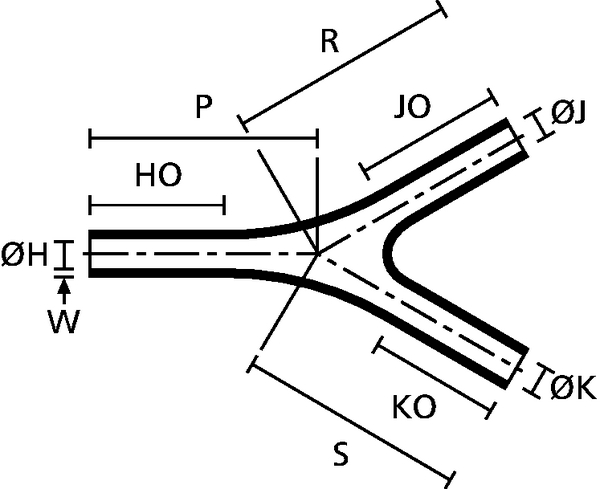

HO/JO/KO ± 15% 41.1mm
P nom. 62.9mm
P ± 10% 121.4mm
P,R&S nom b 62.9mm
W nom. 1.3mm
Weight/Unit 0.014kg

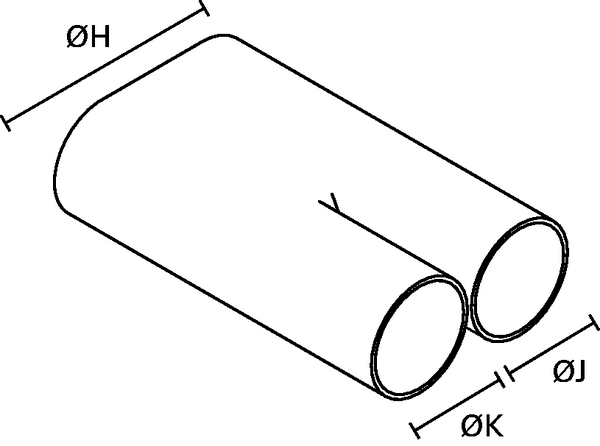

∅H max b 11.4mm
∅H min a 34.2mm
∅J max b 11.4mm
∅J min. a 22.8mm
∅J/K max. b 11.4mm
∅J/K min. a 22.8mm
∅K max. b 11.4mm
∅K min. a 22.8mm
Dielectric Strength 20kV/mm
Dielectric Strength test method IEC 243
Flammability ASTM D635
Minimum Shrink Temperature - °C +100 °C
Operating Temperature -55 °C to 120 °C
ROHS compliant Yes
Specifications
Country of Origin GB
GTIN-13 / EAN 5022660464911
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
