Heat Shrink Cable Joint Kit 1.5-16mm² without Connector Voltage Range 0.6/1 kV
Art.-No. 380-04006
| LVK-5x1.5-16-PO-X-BK
|
Copied
- Universally suitable to connect cables and conductors
- Immediately ready for use
- Using a high-quality thermoplastic inner adhesive
- Good corrosion protection properties with excellent abrasion resistance and weather resistance
- TCP (thermo chromatic paint) spots indicate the sleeve has been sufficiently heated
- Resistant to chemical agents and alkaline earths
- Excellent shrink behavior
- High UV resistance
- Halogen free
Request your individual offer now
Request quote
More products in this product group:
| Application |

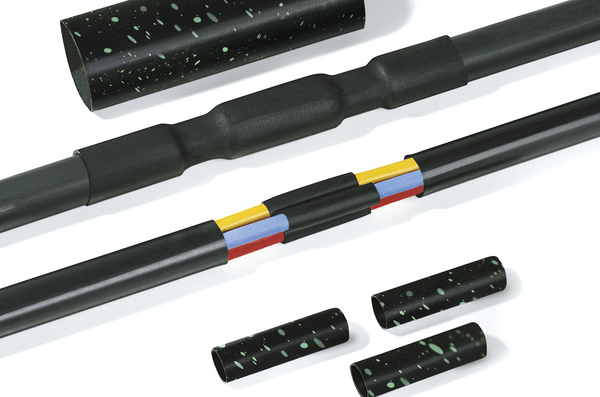

LVK is a heat shrinkable straight-through joint for universal connecting of unarmoured polymeric cables or conductors insulated with PVC, PE and XLPE. Suitable for compression and mechanical connectors on aluminium or copper cables. Voltage level 0.6/1.0 (1.2) kV. |
| Colour | Black (BK) |

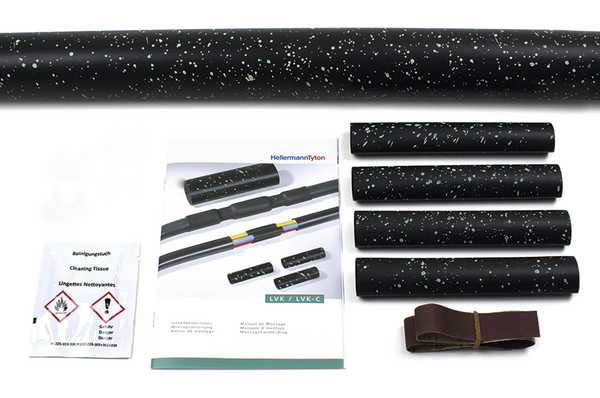

| Content | Outer sleeve, inner sleeves, cleaning cloth, emery cloth, installation instructions |
| Description | LVK heat shrinkable straight-through joint for universal connecting of unarmoured polymeric cables or conductors |
| Material | Polyolefin, cross-linked (PO-X) |
| No. of Inner sleeves | 5 |
| No. of Wires | 5 |
| No. of outer sleeves | 1 |
| PART DESCRIPTION | LVK-5x1.5-16-PO-X-BK |
| Package Content | 1pc. |
| Package Content packed in | kit |
| Product Family | LVK |
| Product Group | Heat shrinkable straight-through joint |
| Short Description | Heat Shrink Cable Joint Kit 1.5-16mm² without Connector Voltage Range 0.6/1 kV |
| Shrink Ratio | up to 4:1 |
| Type | LVK-5x1.5-16 |
| Variant | Shrink Cast |
| Voltage range | Voltage level 0.6/1.0 (1.2) kV |
| Weight/Unit | 0.234281kg |
| With inner glue (Yes/No) | Yes |
| Conductor Size Range mm² | 1.5-16 |

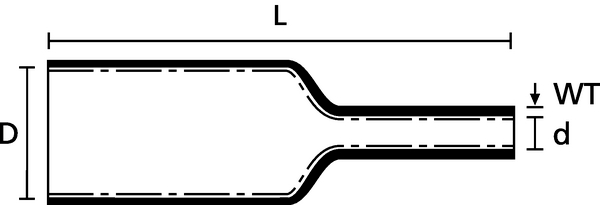

| Height (H) | 50mm |
| Inner Tubing Length (L) | 125.0mm |
| Inner Tubing Recov. ⌀ d max. | 3.2mm |
| Inner Tubing Supplied ⌀ D min. | 19.0mm |
| Inner Tubing Wall (WT) | 3.2mm |
| Longitudinal Change After Shrinkage | -10% max. |
| Outer Tubing Length (L) | 450.0mm |
| Outer Tubing Recov. ⌀ d max. | 12.0mm |
| Outer Tubing Supplied ⌀ D min. | 48.0mm |
| Outer Tubing Wall (WT) | 2.5mm |
| Tube Shape | Round |
Download
| Adhesive | Hot melt adhesive |
| Dielectric Strength | 20kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break (min.) | 400% |
| Elongation at break test method | ASTM D2671 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Limited Fire Hazard | No |
| Minimum Shrink Temperature | +120 °C |
| Operating Temperature | -55 °C to +110 °C |
| ROHS compliant | Yes |
| Shelf Life | 5 years |
| Softening Point Adhesive | +105 °C |
| Specifications |
|
| Tensile Strength | 14MPa |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| Voltage Range | 0.6/1kV |
| Volume Resistance | 10¹⁴ Ω cm |
| Volume Resistance test method | IEC 93 |
| Country of Origin | CN |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026510934 |
| Packaging 1 - Height (m) | 0.06m |
| Packaging 1 - Length (m) | 0.45m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00432m³ |
| Packaging 1 - Weight (kg) | 0.234282kg |
| Packaging 1 - Width (m) | 0.16m |
| Packaging 3 - Height (m) | 0.21m |
| Packaging 3 - Length (m) | 0.555m |
| Packaging 3 - Qty | 12 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0291m³ |
| Packaging 3 - Weight (kg) | 3.311kg |
| Packaging 3 - Width (m) | 0.25m |
| Packaging 4 - Height (m) | 1.195m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 360 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.147m³ |
| Packaging 4 - Weight (kg) | 120.341kg |
| Packaging 4 - Width (m) | 0.8m |
