Solar label, pre-printed, red, 50.8x101.6mm, 50pcs.
Art.-No. 596-00252
| AC2011-840/281-RD
|
Copied
| Application | For use on AC Disconnect. Voltage data can be printed using a thermal transfer printer. |
| Application Method | Labels are applied by hand to PV installations where durable UV resistant marking is required. |
| Colour | Red (RD) |
| Colour of Print | White (WH) |
| Key product features | pre-printed, chemical resistance, outdoor use, UV resistant |
| Local order number | 596-00252 |
| Material | Type 840/281, Polyester, UV-stabilised, clear polyester laminate (840/281) |
| PART DESCRIPTION | AC2011-840/281-RD |
| Package Content | 50pcs. |
| Package Content packed in | Pack |
| Print Method | thermal transfer print |
| Product Group | Printable Solar Installation Labels |
| Short Description | 4" X 2" AC MODULE LABEL 50/RL |

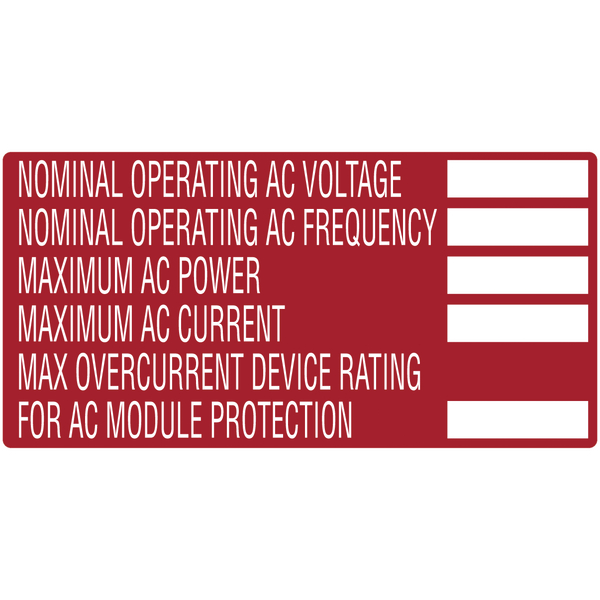

| Technical Description | 4" X 2" White text on red background that reads as: "NOMINAL AC VOLTAGE;NOMINAL OPERATING AC FREQUENCY;MAXIMUM AC POWER;MAXIMUM AC CURRENT;MAXIMUM OVERCURRENT DEVICE RATING FOR AC MODULE PROTECTION." 50 per roll. Label is also printable using a thermal transfer printer to add the variable voltage information on demand. |
| Type | AC2011 |
| UV-Stabilised | Yes |
| Adhesive | Acrylic |
| Adhesive Operating Temperature | -40 °C to +150 °C |
| CE Certification | No |
| CSA Certified | Yes |
| Curing Temperature | +10 °C |
| Halogen-free | Yes |
| Operating Temperature | -40 °C to +150 °C |
| Pre-Printed | Yes |
| ROHS compliant | Yes |
| Recommended Ribbon Type | TT822OUT |
| Specifications |
|
| Specifications | CSA 66956, IFC 2012, NEC2014, NEC2017, UL 969 |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | Yes |
| UL-File Number | MH14382, MH16736 |
