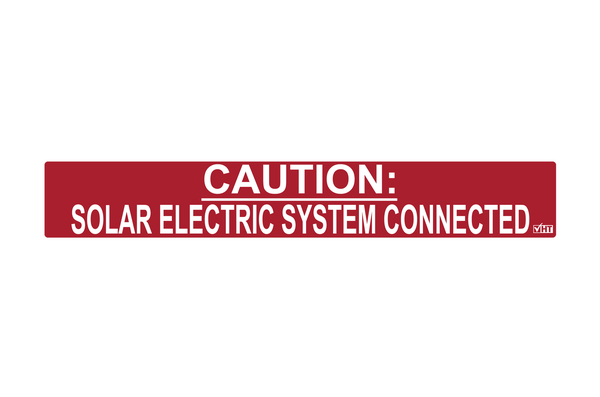

Label, red, CAUTION: SOLAR ELECTRIC SYSTEM CONNECTED, 25.40x165.1mm, 50pcs.
Art.-No. 596-00245 | CSESC-505/281-RD Details

Request your individual offer now

Application for use on Main Service Disconnect
Application Method Labels are applied by hand to PV installations where durable UV resistant marking is required.
Colour Red (RD)
Colour of Print White (WH)
Local order number 596-00245
Marking Text CAUTION: SOLAR ELECTRIC SYSTEM CONNECTED
Material Type 505/281, UV-stabilised, reflective vinyl with clear polyester laminate (505/281)
Pack Cont. 50pcs.
Package Content packed in roll
PART DESCRIPTION CSESC-505/281-RD
Product Group Pre-Printed reflective solar installation labels
Short Description 6.5" X 1" CAUTION SOLAR ELECT SYS CON - 50/PK
Technical Description 6.5" X 1" White text on a red background that reads as: "CAUTION - SOLAR ELECTRIC SYSTEM CONNECTED" in 3/8" tall characters using reflective inks. 50 per pkg.
Height (H) 25.40mm
Thickness (T) 64.0µm
Width (W) 165.1mm
Adhesive Acrylic
Adhesive Operating Temperature -40 °C to +150 °C
CE Certification No
CSA Certified No
Curing Temperature +10 °C
Halogen-free No
Operating Temperature -40 °C to +79 °C
Pre-Printed Yes
Specifications
Specifications IFC 2012, NEC2011, UL 969
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number MH11410
UV-Stabilised (Yes/No) Yes
Country of Origin US
GTIN-13 / EAN 4031026668826
Labels per Column 1
Labels per Row 1
Packaging 1 - Weight (kg) 0.521kg
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
UNSPSC Key 55121704
