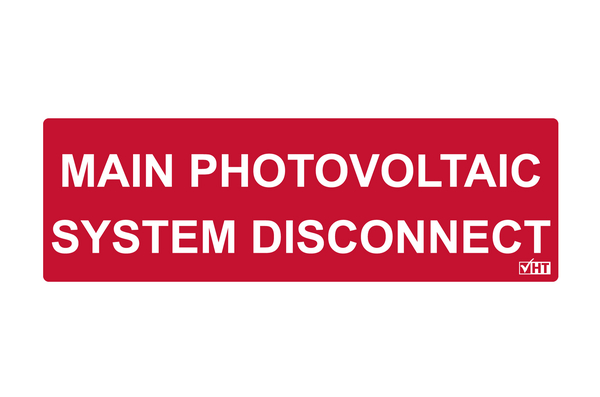

Label, red, MAIN PHOTOVOLTAIC SYSTEM DISCONNECT, 44.40x139.7mm, 50pcs.
Art.-No. 596-00243 | MPVSD-505/281-RD Details

Request your individual offer now

Application For use on Main PV Disconnect
Application Method Labels are applied by hand to PV installations where durable UV resistant marking is required.
Colour Red (RD)
Colour of Print White (WH)
Local order number 596-00243
Marking Text MAIN PHOTOVOLTAIC SYSTEM DISCONNECT
Material Type 505/281, UV-stabilised, reflective vinyl with clear polyester laminate (505/281)
Pack Cont. 50pcs.
Package Content packed in roll
PART DESCRIPTION MPVSD-505/281-RD
Short Description 5.5" X 1.75" MAIN PV SYSTEM DISCONNECT - 50/PK
Technical Description 5.5" X 1.75" White text on red background that reads as: "MAIN PV SYSTEM DISCONNECT." in 3/8" tall characters. 50 per pkg.
Height (H) 44.40mm
Thickness (T) 64.0µm
Width (W) 139.7mm
Adhesive Acrylic
Adhesive Operating Temperature -40 °C to +150 °C
CE Certification No
CSA Certified No
Curing Temperature +10 °C
Halogen-free No
Operating Temperature -40 °C to +79 °C
Pre-Printed Yes
Specifications
Specifications IFC 2012, NEC2017, UL 969
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number MH11410, MH14382, MH16736
UV-Stabilised (Yes/No) Yes
Country of Origin US
GTIN-13 / EAN 4031026668802
Labels per Column 1
Labels per Row 1
Packaging 1 - Weight (kg) 0.521kg
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
UNSPSC Key 55121606
