Label, silver, laser print, 12.70x25.40mm, 5000pcs.
Art.-No. 594-11103 | TAG15LA4-1103-SR Details

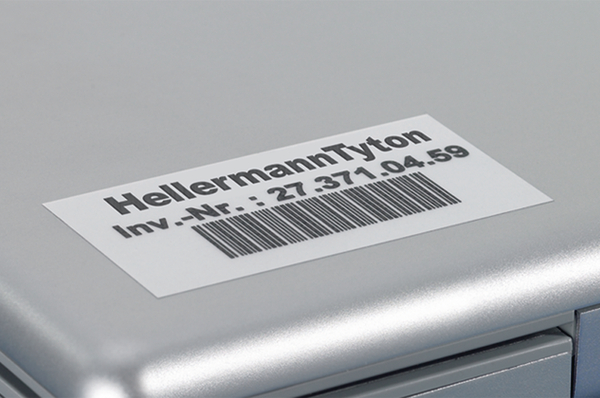

  • Matt-silver rating labels for component marking
  • For use on flat and smooth surfaces
  • Simple and efficient label design and printing with TagPrint Pro labelling software
  • Templates available from www.HellermannTyton.com/templates for those wishing to use MS Word
  • Clear protective box to ensures labels stay as good as new
Show more

Request your individual offer now

Application These silver labels come in various sizes and are ideal for the identification of industrial assets. The labels can be easily printed with office laser printers. All label templates are already stored in HellermannTyton’s TagPrint Pro software so label design including barcodes or logos has been made easy even with office printers.
Application Method The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties Excellent resistance against water, alcohol, most oils, lubricants, fuels, aliphatic solvents, weak acid, salts, alkalis and UV light.
Colour Silver (SR)
Colour Marking Field Silver (SR)
Local order number TAG15LA4-1103-SR
Material Type 1103, Polyester, silver (1103)
PART DESCRIPTION TAG15LA4-1103-SR
Pack Cont. 5000pcs.
Package Content packed in Pack
Paper Format A4
Product Family Helatag 1103 (Silver)
Product Group Type label identification, laser printer
Self adhesive (Yes/No) Yes
Short Description Type label identification, laser 25.4x12.7 mm silver
Type TAG15LA4
HR 25.40mm
Height (H) 12.70mm
Print Method laser print
Print Method (Alternative) laser beam print
Thickness of Adhesive (TA) nom. 24µm
Thickness of Foil 53
Thickness of foil test method ISO 534
VR 12.70mm
Weight/Unit 0.000019kg
Width (W) 25.40mm
Width of Liner (WL) 210.00mm
Adhesive Acrylic
Curing Temperature from 0 °C
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
Initial tack 13N
Initial tack FINAT FTM 9
Operating Temperature -40 °C to +150 °C
Pre-Printed No
ROHS compliant Yes
Shear strength 1000min
Shear strength test method FINAT FTM 8
Shelf Life Minimum 1 year upon receipt / maximal 4 years after production date.
Specifications
UL Recognized (US and Canada) Yes
Country of Origin DE
Customs Number 39199080
GTIN-13 / EAN 4031026294568
Labels per Row 7pcs.
Labels per Sheet 154pcs.
Packaging 1 - Height (m) 0.017m
Packaging 1 - Length (m) 0.315m
Packaging 1 - Qty 5000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00127
Packaging 1 - Weight (kg) 0.093001kg
Packaging 1 - Width (m) 0.238m
Packaging 3 - Height (m) 0.21m
Packaging 3 - Length (m) 0.32m
Packaging 3 - Qty 60000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0168
Packaging 3 - Weight (kg) 1.616kg
Packaging 3 - Width (m) 0.25m
Packaging 4 - Height (m) 1.194m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 2700000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.146
Packaging 4 - Weight (kg) 93.72kg
Packaging 4 - Width (m) 0.8m
Sheets per Pack 33pcs.
Storage Temperature +15 °C to +25 °C
Storage conditions 45% ±5% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness., Must be stored in a dark place.
ETIM 7.0 Key EC001288
ETIM 8.0 Key EC001288
ETIM 9.0 Key EC001288
