P55-PVC-BU : P55
Art.-No. 172-03157 | P55-PVC-BU Details

Request your individual offer now

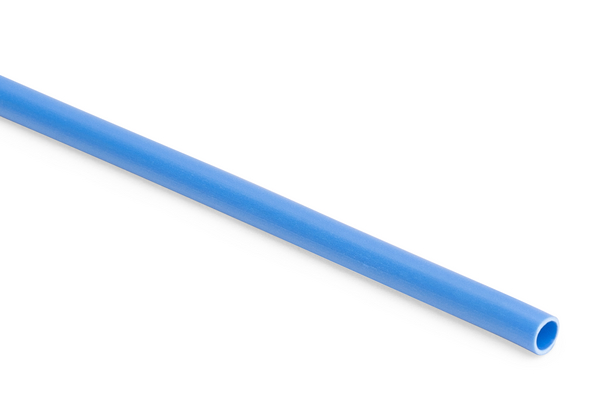

Application These high-grade PVC sleeves (P) have a thin wall that makes them ideal for insulating wire in areas where space is at a premium. They can be supplied as continous tubing or cut lengths. The tubing is available in international resistor colour code, pink and transparent.
Application Method In order to speed up the application of a series of sleeves, a range of TJC applicator tools are available. Thread the required sleeves onto the applicator tool, insert the wire into the end of the tool and then simply slide the sleeves along the tool and onto the wire.
Colour Blue (BU)
Local order number P55BE
Material Flexible Polyvinyl Chloride, cadmium free (PVC)
PART DESCRIPTION P55-PVC-BU
Pack Cont. 200m
Package Content packed in Reel
Type P55
Supplied ∅ D 5.5mm
Wall (WT) 0.40mm
Dielectric Strength 57kV/mm
Dielectric Strength test method IEC 60684 P2
Flammability UL 94 V0 (1 mm)
Operating Temperature -65 °C to +105 °C, intermittent +135 °C
ROHS compliant Yes
Specifications
Specifications BS-3858 Type 3, DEF STAN 59-15, IEC 684-3-101/104, UL 224
Country of Origin GB
GTIN-13 / EAN 5022660587115
Reel Length 200.0m
ETIM 7.0 Key EC002254
ETIM 8.0 Key EC002254
ETIM 9.0 Key EC002254
UNSPSC Key 39121721
