Strain relief clips : KK2

Strain Relief Clip blackArticle number: 234-10200

Features

  • Simple 1-screw fixing to guide and secure leads
  • Two halves of the clip are linked to ensure no loss of parts during re-wiring
  • Anti-rotation pin prevents leads from twisting

Certifications & Approvals

Application

Strain relief clips for gripping cables up to 8.5 mm bundle diameter. Strain relief clip is simply attached to mounting surface with an M4 fixing screw.

Colour Black (BK)
Description Klam-Klip Cable Restraint KK2
Fixation Method screw-hole
Local order number KK2.NB6P
Pack Cont. 500pcs.
Package Quantity per pcs.
PART DESCRIPTION KK2-PA6HIR-BK
Product Family Klam-Klip (KK)
Product Group Strain relief clips
Short Description Strain Relief Clip black
Variant Closed

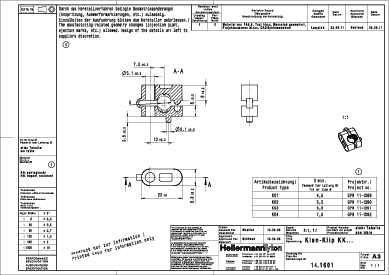

Bundle ∅ max. 6.7mm
Bundle ∅ min. 5.5mm
Fixing Hole Centres (F) 10.0mm
Fixing Hole Centres (F2) 10.0mm
Fixing Hole Centres (F3) 4.5mm
for Hole ∅ (FH) 5.0 mm
Height (H) 14.0mm
Height (H2) 3.5mm
Length (L) 22.0mm
Length (L2) 10mm
Nominal ∅ 6mm
Width (W) 8.8mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous good No
Material Polyamide 6, high impact modified (PA6HIR)
Nato number 5340-12-306-3047
Operating Temperature - °C -40 °C to +80 °C
Specifications
UV-Resistant (Yes/No) No
GTIN-13 / EAN 5022660308826
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 0.15m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00495
Packaging 1 - Weight (kg) 1.0kg
Packaging 1 - Width (m) 0.33m
Packaging 3 - Height (m) 0.345m
Packaging 3 - Length (m) 0.38m
Packaging 3 - Qty 6000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0498
Packaging 3 - Weight (kg) 12.62kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.258m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 108000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.208
Packaging 4 - Weight (kg) 248.16kg
Packaging 4 - Width (m) 0.8m
ETIM 6.0 EC000127
ETIM 7.0 Key EC000127
