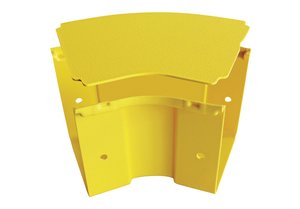

GigaDuct Elbow, Horizontal, 90⁰, 50mm, with Cover
Art.-No. 181-00398 | LG-BHXD90-YL

Copied
  • 50mm wide
  • 90⁰ Bend
  • Supplied with cover
  • Changes direction of horizontal routes
  • Fully encloses cables to keep out dirt and dust as the fibre is routed through different areas of the data centre
  • Protects cables by maintaining proper bend radius, preventing micro bends and macro bends that degrade performance
  • Maintains attractive aesthetics by enclosing cables throughout the facility

Request your individual offer now

Application Horizontal elbows are used for creating bends that change the direction of horizontal routes. This model offers a 90⁰ bend and is supplied with cover.
Colour Yellow (YE)
PART DESCRIPTION LG-BHXD90-YL
Package Content 1pc.
Product Family Elbow - Horizontal
Product Group Fittings
Short Description GigaDuct Elbow, Horizontal, 90⁰, 50mm, with Cover
Technical Description GigaDuct is a robust, scalable cable management system engineered specifically for organising and protecting optical fibre cables in the data centre environment. Constructed with precision, it provides a dedicated pathway that prevents cable congestion, minimises physical stress on fibres, and facilitates efficient cable management. Whether you are setting up a new data centre or upgrading an existing one, HellermannTyton’s GigaDuct offers unmatched versatility and reliability.
Type LG-BHXD90-YL
Angle 90
Depth (D) 130mm
Height (H) 65mm
Width (W) 30mm
Halogen-free Yes
Limited Fire Hazard Yes
ROHS compliant Yes
Specifications
Country of Origin GB
Dimensions W x H x D 30 mm x 65 mm x 130 mm
GTIN-13 / EAN 4031026496610
