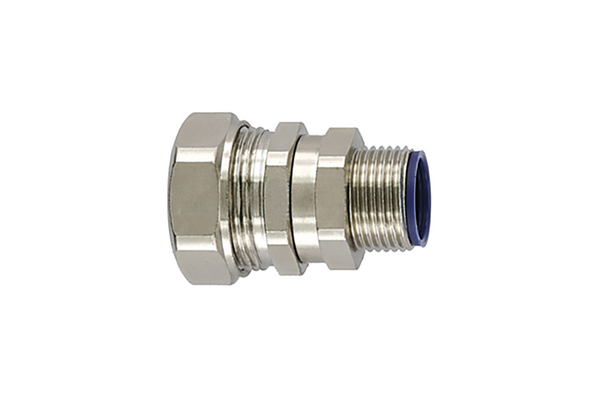

Swivel Thread Compression Fitting IP68 ø16mm M16
Art.-No. 166-32301 | LTS16-SMC-M16-NPB/PA6/PS-ML Details

  • Multipart compression fitting including polyamide seal
  • Provides excellent tensile strength
  • External thread swivels about main body even after tightening

Request your individual offer now

Application External thread, nickel plated brass with internal plated steel circlip. Fulfils IP66, IP67, IP68 and IP69k.
Colour Metal (ML)
Material Nickel Plated Brass (NPB), Polyamide 6 (PA6), Plated Steel (PS)
Metallic Fitting Type Compression, straight
PART DESCRIPTION LTS16-SMC-M16-NPB/PA6/PS-ML
Pack Cont. 10pcs.
Package Content packed in Bag
Product Family LTS-SMC Swivel Thread Compression Fitting, IP68
Product Group Fittings for metallic conduits with liquid-tight cover
Short Description Swivel Thread Compression Fitting IP68 ø16mm M16
Thread type metric
Type LTS16-SMC-M16
Type of connection Thread
Variant Straight

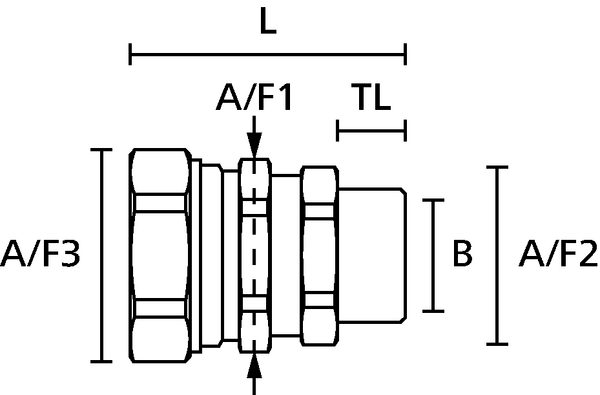

A/F Nut (A/F3) 26mm
A/F Thread (A/F2) 24mm
Height (H) 26mm
Length (L) 40.9mm
Lowest inner diameter 10.7mm
Min. Bore Size (B) 10.7mm
Nominal ∅ 16mm
Nominal ∅ (imperial) 0.63"
Thread Length (TL) 10.0mm
Thread Size M16
Weight/Unit 0.06183kg
CAS Number 7439-92-1
Critical Substance Lead in Copper alloy 4%
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
IP-Rating IP66, IP67, IP68, IP69k
Operating Temperature -50 °C to +135 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 74122000
GTIN-13 / EAN 4031026308241
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.26m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00156
Packaging 1 - Weight (kg) 0.618301kg
Packaging 1 - Width (m) 0.2m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001180
ETIM 8.0 Key EC001180
ETIM 9.0 Key EC001180
