19/03/2024

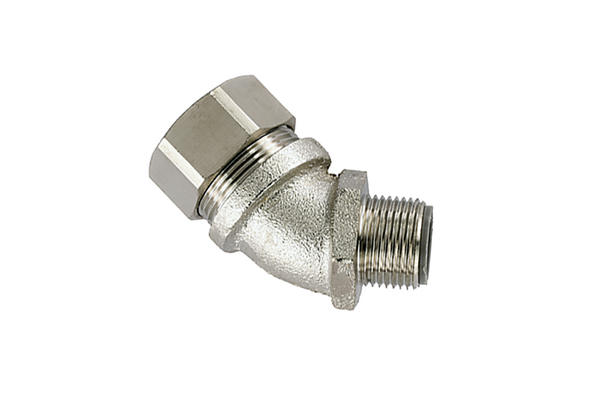

Elbow Compression Fitting 45° IP68 ø25mm M25
Art.-No. 166-32502 | LTS25-45FMC-M25-NPB/PA6-ML Details

  • Multipart 45° compression fitting including polyamide seal
  • Provides excellent tensile strength

Request your individual offer now

Application External thread, nickel plated brass. Fulfils IP66, IP67, IP68 and IP69k.
Colour Metal (ML)
Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Metallic Fitting Type Compression, 45°
Pack Cont. 10pcs.
Package Content packed in Bag
PART DESCRIPTION LTS25-45FMC-M25-NPB/PA6-ML
Product Family LTS-45FMC 45° Elbow Compression Fitting, IP68
Product Group Fittings for metallic conduits with liquid-tight cover
Short Description Elbow Compression Fitting 45° IP68 ø25mm M25
Thread type metric
Type of connection Thread
Variant 45°-elbow

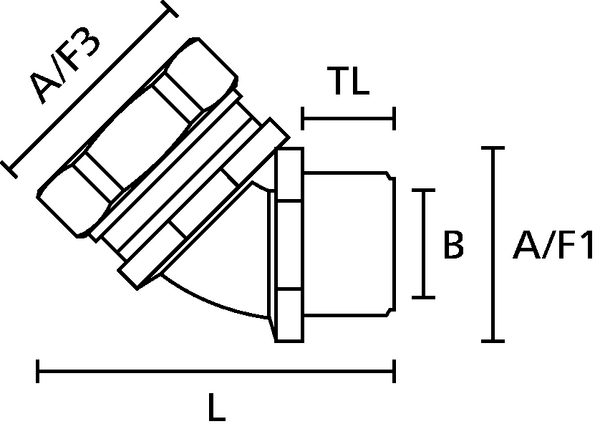

A/F Nut (A/F3) 35mm
Angle 45°
Height (H) 30.0mm
Length (L) 63.0mm
Lowest inner diameter 18.0mm
Min. Bore Size (B) 18.0mm
Nominal ∅ 25mm
Nominal ∅ (imperial) 1"
Thread Length (TL) 14.0mm
Thread Size M25
Weight/Unit 0.138979kg
CAS Number 7439-92-1
Critical Substance Lead in Copper alloy < 4%
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
IP-Rating IP66, IP67, IP68, IP69k
Operating Temperature -50 °C to +135 °C
Specifications
Country of Origin GB
Customs Number 74122000
GTIN-13 / EAN 4031026308401
Packaging 1 - Height (m) 0.06m
Packaging 1 - Length (m) 0.26m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00312
Packaging 1 - Weight (kg) 1.389791kg
Packaging 1 - Width (m) 0.2m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001180
ETIM 8.0 Key EC001180
ETIM 9.0 Key EC001180
