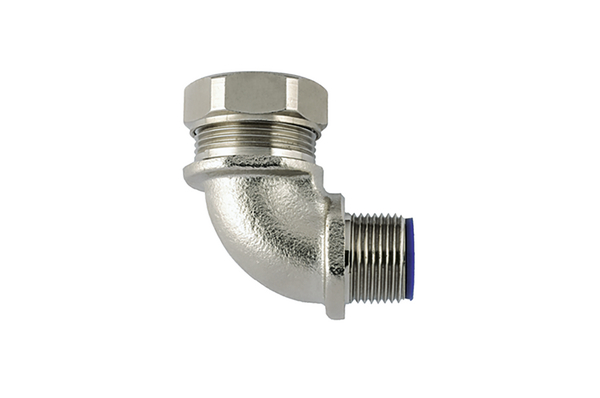

Elbow Compression Fitting 90° IP68 ø63mm M63
Art.-No. 166-32408 | LTS63-90FMC-M63-NPB/PA6-ML Details

  • Multipart 90° compression fitting including polyamide seal
  • Provides excellent tensile strength

Request your individual offer now

Application External thread, nickel plated brass. Fulfils IP66, IP67, IP68 and IP69k.
Colour Metal (ML)
Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Metallic Fitting Type Compression, 90°
Pack Cont. 1pc.
Package Content packed in Bag
PART DESCRIPTION LTS63-90FMC-M63-NPB/PA6-ML
Product Family LTS-90FMC 90° Elbow compression fitting, IP68
Product Group Fittings for metallic conduits with liquid-tight cover
Short Description Elbow Compression Fitting 90° IP68 ø63mm M63
Thread type metric
Type of connection Thread
Variant 90°-elbow
A/F Nut (A/F3) 70mm
Angle 90°
Height (H) 72.0mm
Lowest inner diameter 49.0mm
Min. Bore Size (B) 49.0mm
Nominal ∅ 63mm
Nominal ∅ (imperial) 2.5"
Thread Length (TL) 20.0mm
Thread Size M63
Weight/Unit 1.14963kg
CAS Number 7439-92-1
Critical Substance Lead in Copper alloy < 4%
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
IP-Rating IP66, IP67, IP68, IP69k
Operating Temperature -50 °C to +135 °C
Specifications
Country of Origin GB
Customs Number 74122000
GTIN-13 / EAN 4031026308371
Packaging 1 - Height (m) 0.08m
Packaging 1 - Length (m) 0.26m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00416
Packaging 1 - Weight (kg) 1.149631kg
Packaging 1 - Width (m) 0.2m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Qty 4
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Weight (kg) 304.599kg
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001180
ETIM 8.0 Key EC001180
ETIM 9.0 Key EC001180
